Harken 1/4" (6mm) "D" Shackle

Item #

2109

Product Description

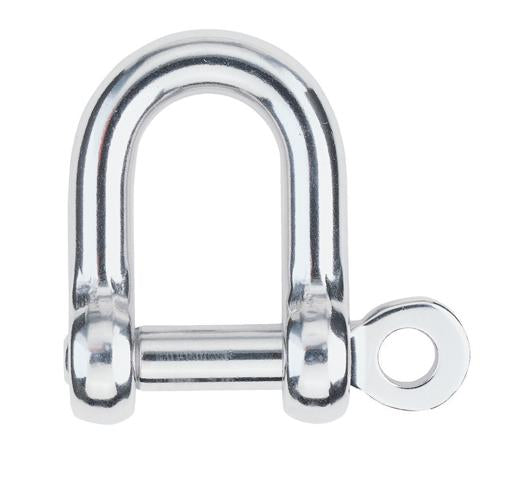

Harken 1/4" (6mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.

Specifications:

  • Shackle pin Ø: 1/4 in. (6 mm)

  • Weight: 0.80 oz. (22.5 g)

  • A: 3/4 in. (19 mm)

  • B: 9/16 in. (14 mm)

  • Max. working load: 2770 lbs. (1260 kg)

  • Breaking load: 5540 lbs. (2510 kg)
  • 3D drawing - IGS: 2109.IGS (open/save)
    Photo - EPS: 2109.eps (open/save)
    Photo - JPG: 2109.jpg (open/save)
