Harken 1/2" (12mm) "D" Shackle

Item #

2127

Product Description

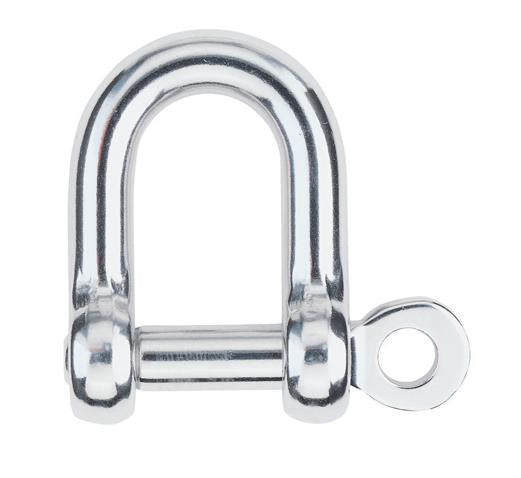

Harken 1/2" (12mm) "D" Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.

Specifications:

  • Shackle pin Ø: 1/2 in. (12 mm)

  • Weight: 6.8 oz. (193 g)

  • A: 1 3/4 in. (44 mm)

  • B: 1 in. (25 mm)

  • Max. working load: 12000 lbs. (5440 kg)

  • Breaking load: 24000 lbs. (10880 kg)
  • Drawing - DWG: 2127.dwg (open/save)
    Drawing - DXF: 2127.dxf (open/save)
    3D drawing - IGS: 2127.igs (open/save)
    Photo - EPS: 2127.eps (open/save)
    Photo - JPG: 2127.jpg (open/save)
