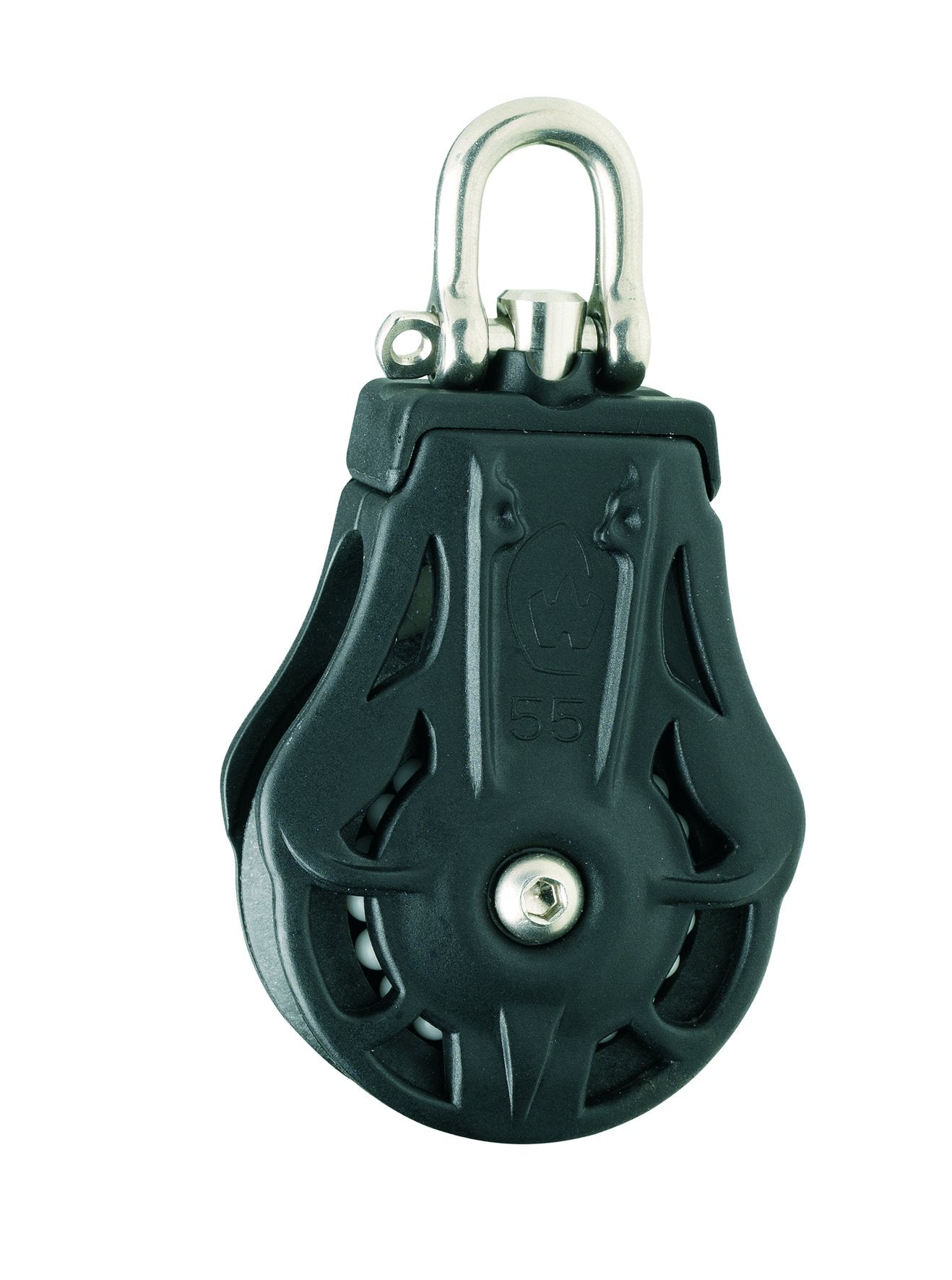

Wichard Single 2 49/64" (70mm) Ball Bearing Block w/ Swivel Head

Item #

75105

Usually ships within 1-3 days

Product Description

Wichard Single 2 49/64" (70mm) Ball Bearing Block w/ Swivel Head

Features:

  • Weight: 13 oz. (368 g)

  • Sheave diameter: 2 49/64" (70mm)

  • Shackle Diameter: 5/16" (8mm)

  • Length: 6 1/64" (153mm)

  • Width: 3 5/32" (80mm)

  • Thickness: 1 1/2" (38mm)

  • Working load: 2646 Lbs (1200 kg)

  • Breaking load: 5950 Lbs (2700 kg)

  • Rope Size: 9/16" (14mm)

  • Forged Shackle: 5/16" (8mm)

    Applications

  • Mainsail systems and travelers

  • Spinnaker sheets

  • Genoa sheets

  • Running backstays

    Material

  • Grade 316L stainless steel head configuration

  • Grade 316L stainless steel load straps

  • Polycarbonate flanges

  • Composite saddle for cam models

  • Delrin ball bearings

  • Composite sheave
