Product Description

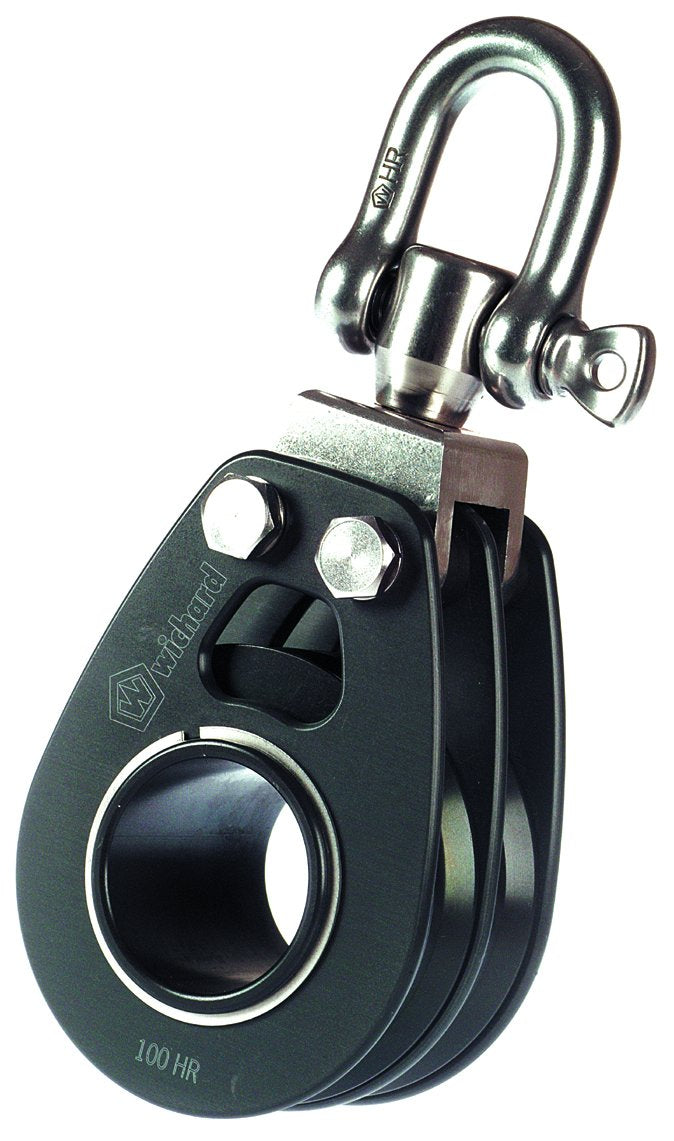

Wichard Double 3 5/32" (80mm) HR Roller Block w/ Swivel Head
Features:
Weight: 1.9 lbs. (868 g)
Sheave diameter: 3 5/32" (80mm)
Shackle diameter: 15/32" (12mm)
Length: 6 3/32" (155mm)
Width: 2 15/64" (83mm)
Thickness: 2 15/64" (57mm)
Working load: 3520 Lbs (1600 kg)
Breaking load: 8800 Lbs (4000 kg)
WLL (working load limit): 1760 Lbs (800 kg)
Rope Size: 15/32"-9/16" (12mm-14mm)
HR Shackle
Applications
Genoa and spinnaker sheets
Mainsail systems and travelers
Running backstays
Material
Titanium swivel head
Flanges, hubheave, sheave: hard anodised aluminium + Teflon
Torlon rollers
HR forged shackle (17.4 PH)
