Product Description

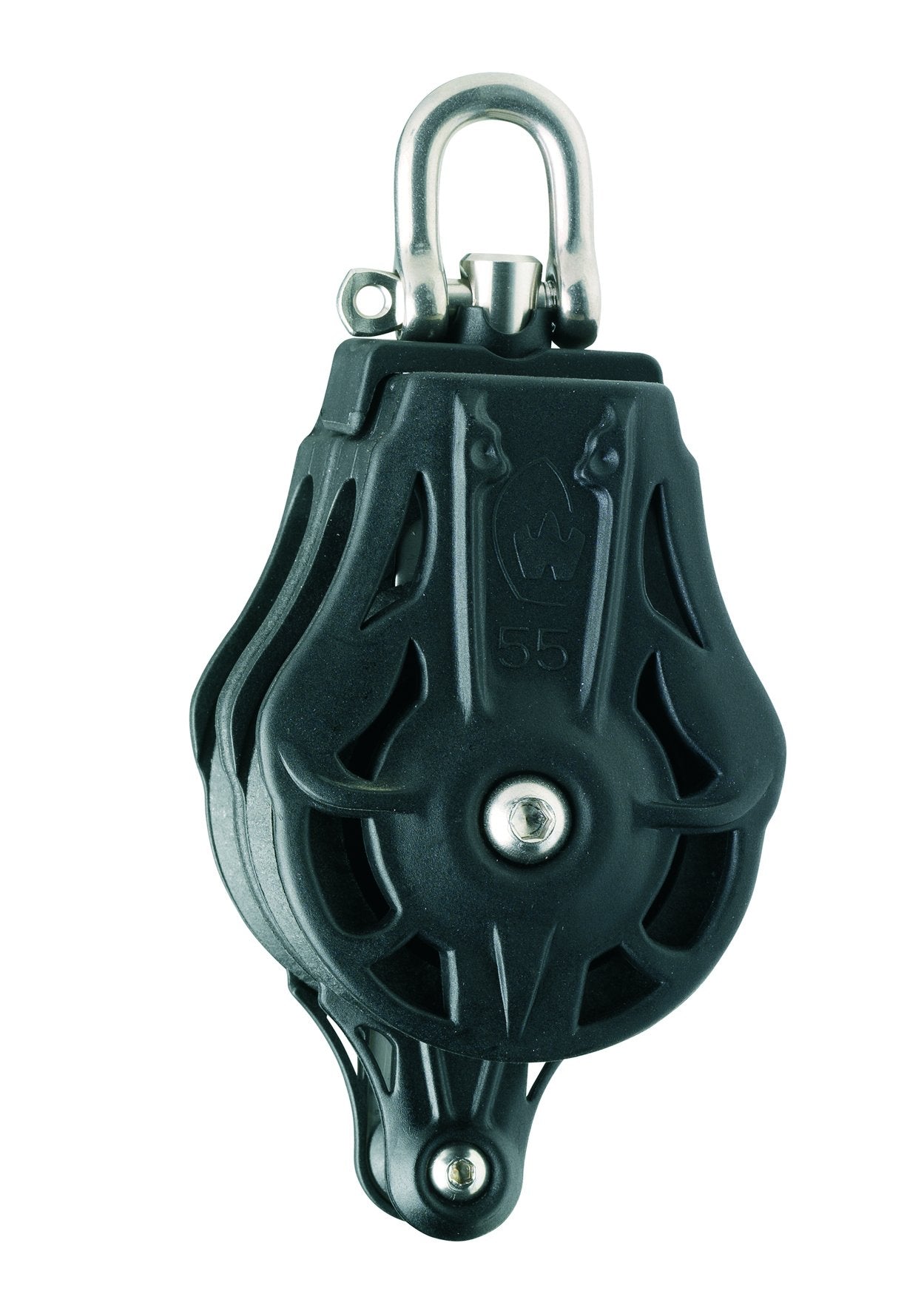

Wichard Double 1 49/64" (45mm) Block w/ Swivel Head & Becket
Features
Weight - 6.8 oz. (192 g)
Sheave Diameter - 1 49/64" (45mm)
Shackle Diameter - 13/64" (5mm)
Length - 4 39/64" (117mm)
Width - 1 15/16" (49mm)
Thickness - 1 13/16" (46mm)
Working Load - 1058 Lbs (480 kg)
Breaking Load - 2200 Lbs (1000 kg)
Rope Size - 13/32" (10mm)
Forged Shackle - 13/64" (5mm)
Applications
Mainsheet systems
Halyard applications
Boom Vangs
Downhaul
Mast head block
Material
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
Polycarbonate flanges
Composite saddle for cam models
Composite sheave
