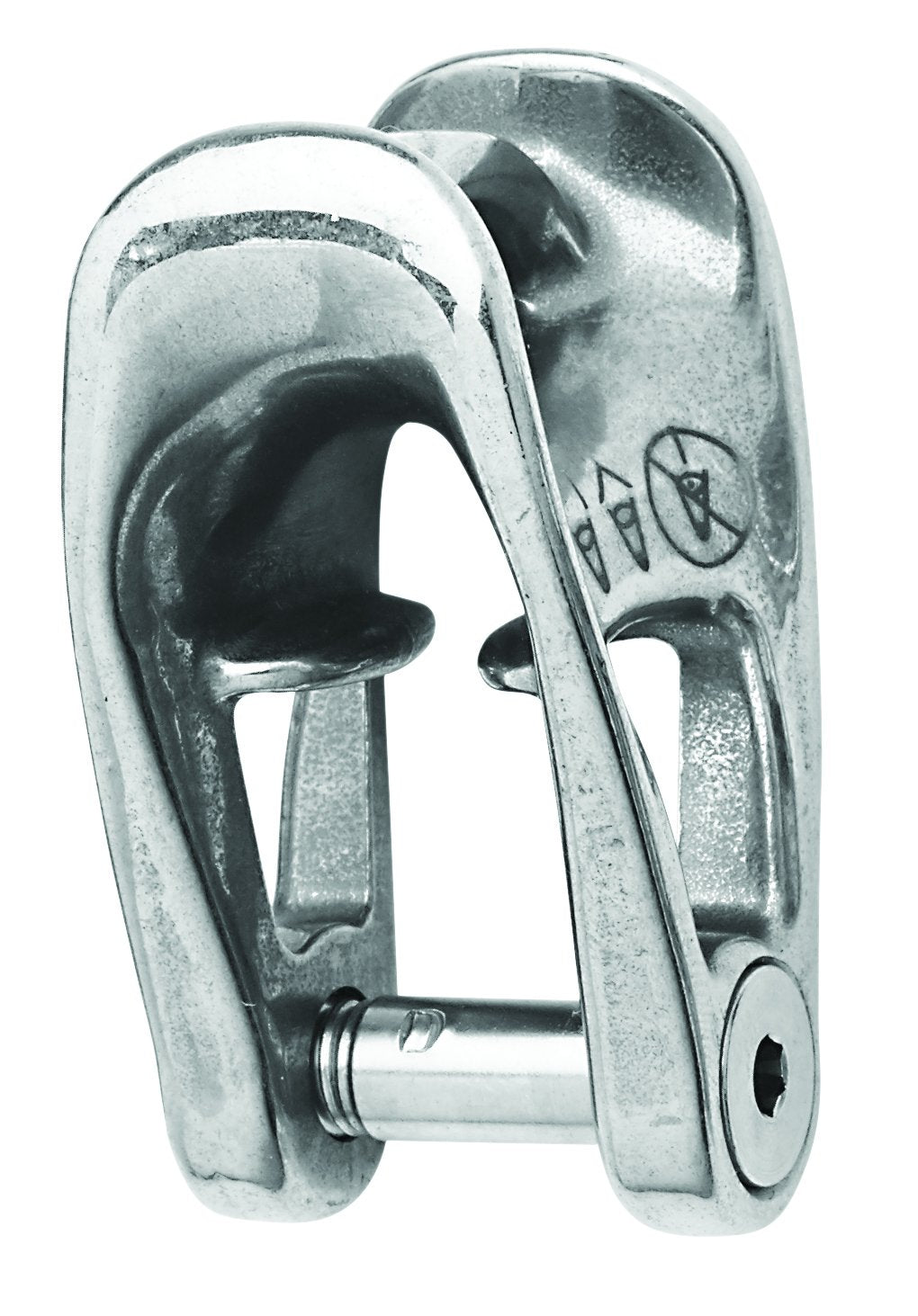

Wichard 5/16" MXEvo Halyard Shackle w/ Allen Head Pin for Max 3/8" Rope

Item #

11614

Product Description

Wichard 5/16" MXEvo Halyard Shackle w/ Allen Head Pin for Max 3/8" Rope

Features:

  • Weight: 3.5 oz. (100 g)

  • Length: 2 7/16" (62 mm)

  • Width: 1 27/64" (36 mm)

  • Working load: 2860 lbs. (1300 Kg)

  • Breaking load: 7720 lbs. (3500 Kg)

  • A: 45/64" (18 mm)

  • B: 45/64" (18 mm)

  • C: 1 27/64" (9 mm)

  • Diameter: 5/16" (8 mm)

    Description

  • Dedicated to heavy load applications

  • Impressive working and breaking load limits

  • Allen head pin version

  • Becket function to make tackles

  • Rope kept on track thanks to the fins

  • Optimized weight and dimensions

  • Easy opening

  • Easy rope installation

  • Limited rope wear thanks to the track conception

  • Monobloc item (without mechanical part) for a better reliability

  • For max rope size 10 mm

    Applications

  • Mastfoot block

  • Running backstay

    Material:

  • Grade 316L stainless steel
