Wichard 5/16" Diameter D Shackle w/ Captive Pin

Item #

1404

Product Description

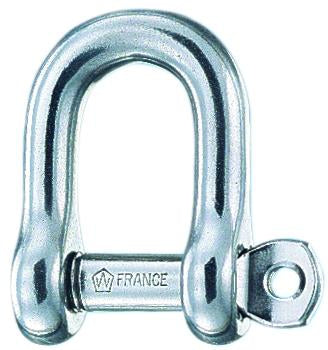

Wichard 5/16" Diameter D Shackle w/ Captive Pin

Features

  • Weight- 0.135 Lbs

  • Working load- 2205 Lbs

  • Breaking load- 6349 Lbs

  • A- 1 1/64 inch

  • B- 5/8 inch

  • C- 11/32 inch

  • Diameter- 5/16 inch

    Description

  • Captive pin "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • Standard applications of shackle

  • Attachment applications: blocks, head …

    Material

  • Grade 316L stainless steel
