Wichard 5 5/16" Trigger Snap Shackle w/ Swivel Shackle

Item #

2857

Product Description

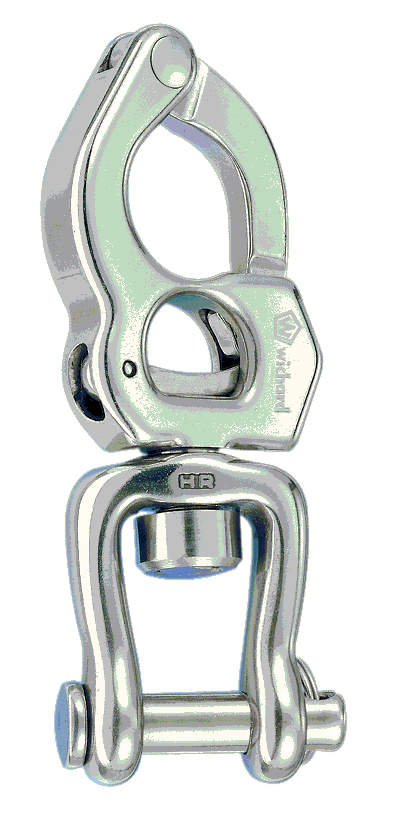

Wichard 5 5/16" Trigger Snap Shackle w/ Swivel Shackle

Features

  • Weight - 0.86 Lbs (309 g)

  • Length - 5 5/16" (135mm)

  • Working Load- 9171 Lbs (4160 kg)

  • Breaking Load- 17630 Lbs (8000 kg)

  • A - 1 1/16" (27mm)

  • B - 3/4" (19mm)

  • C - 45/64" (18mm)

  • D - 7/16" (11mm)

    Description

  • HR forged trigger snap shackle with swivel shackle

  • The opening is made by hand (low load) or by using a release fid

  • Allows to attach a non spliced sheet.

  • Free rotation of the snap shackle thanks to the swivel

  • Outstanding working and breaking loads

    Applications

  • Trigger snap shackle requiring no splicing sheet

  • Many fastening applications: furling systems, deck fitting…

    Material

  • HR stainless steel 17.4 PH
