Wichard

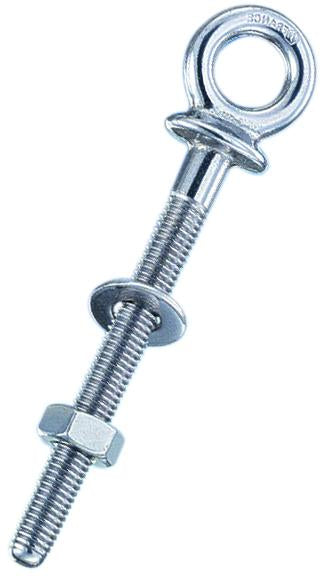

Wichard 4" Long Eye Bolt w/ 5/8" (10mm) Diameter
Wichard 4" Long Eye Bolt w/ 5/8" (10mm) Diameter
Regular price
$66.22 USD
Regular price
$77.90 USD
Sale price
$66.22 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Wichard 4" Long Eye Bolt w/ 5/8" (10mm) Diameter
Features
Weight - 0.216 Lbs (98 g)
Working Load - 3527 Lbs (1600 kg)
Breaking Load - 5950 Lbs (2700 kg)

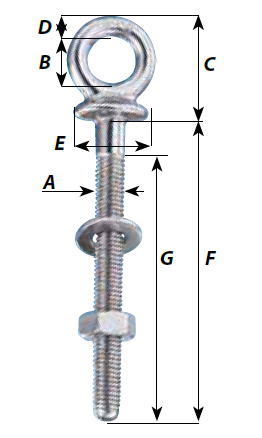

A - M10 x 150
B - 5/8" (16mm)
C - 1 27/64" (36mm)
D - 9/32" (7mm)
E - 64/64" (25mm)
F - 3 15/16" (100mm)
G - 3 29/64" (88mm)
Description
A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Available in different sizes
Maximum tightening torque: 36Nm
Applications
Various fastening applications
Towing application
Waterskiing lines attachment
Material
Grade 316L stainless steel
