Wichard 4 3/4" Long Eye Bolt w/ 11/16" (12mm) Diameter

Item #

6497

Product Description

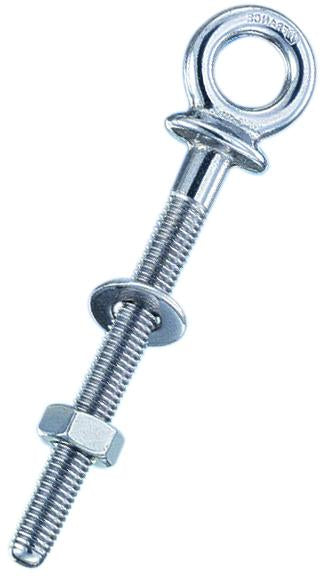

Wichard 4 3/4" Long Eye Bolt w/ 11/16" (12mm) Diameter

Features

  • Weight - 0.359 Lbs (163 g)

  • Working Load - 5291 Lbs (2400 kg)

  • Breaking Load - 7700 Lbs (3500 kg)

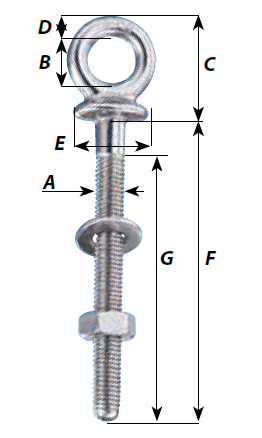

  • A - M12 x 175

  • B - 45/64" (18mm)

  • C - 1 39/64" (41mm)

  • D - 5/16" (8mm)

  • E - 1 3/32" (28mm)

  • F - 4 23/32" (120mm)

  • G - 4 1/8" (105mm)

    Description

  • A complete range of single piece forged products for fastenings applications

  • Outstanding working and breaking loads

  • Available in different sizes

  • Maximum tightening torque: 36Nm

    Applications

  • Various fastening applications

  • Towing application

  • Waterskiing lines attachment

    Material

  • Grade 316L stainless steel
