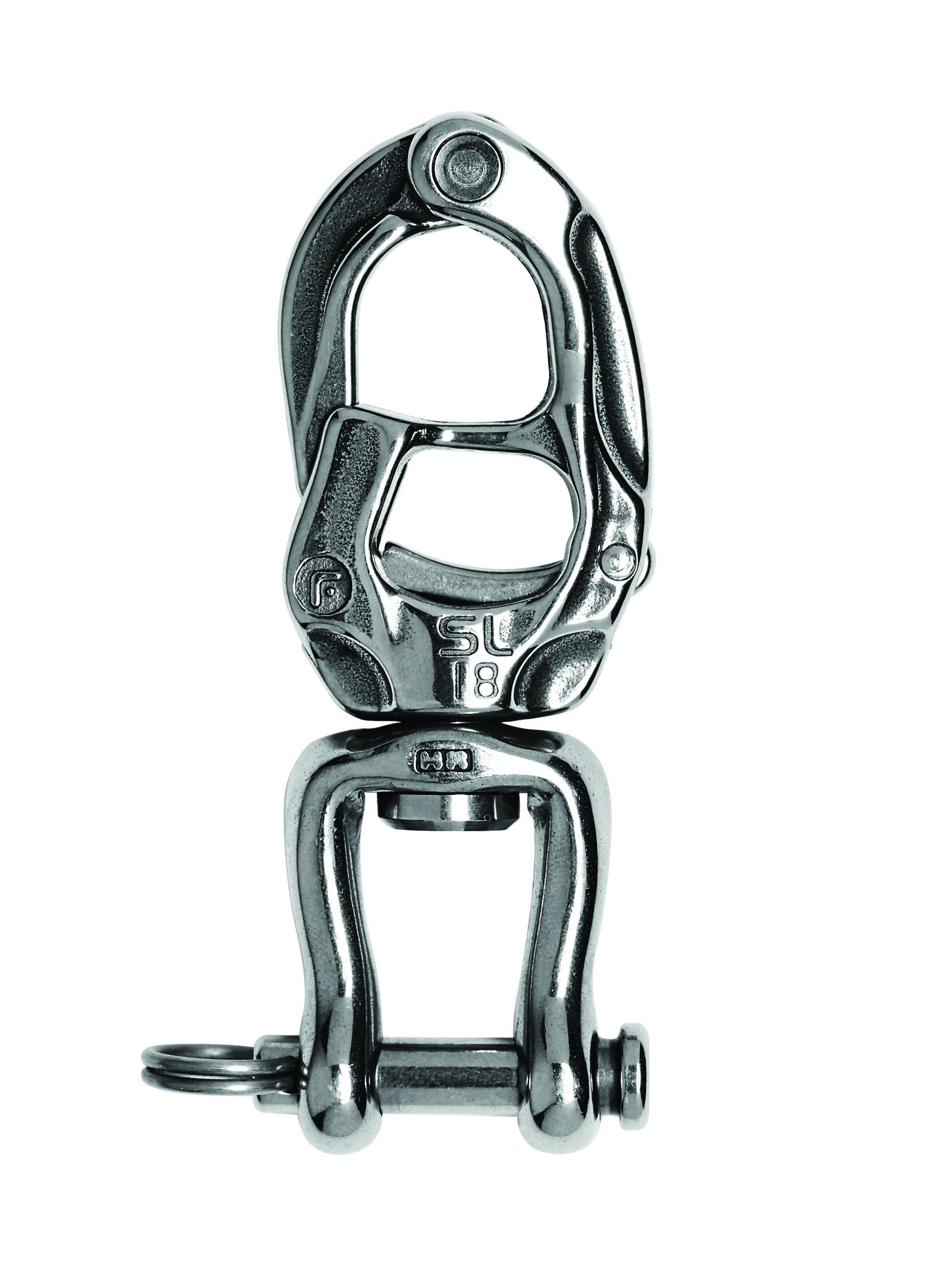

Wichard 4 1/8" Trigger Snap Shackle w/ Swivel Shackle
Wichard 4 1/8" Trigger Snap Shackle w/ Swivel Shackle
Regular price
$325.00 USD
Regular price
$382.35 USD
Sale price
$325.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Wichard 4 1/8" Trigger Snap Shackle w/ Swivel Shackle
Features
Weight - 0.406 Lbs (184 g)
Length - 4 1/8" (105mm)
Working Load- 3527 Lbs (1600 kg)
Breaking Load- 7055 Lbs (4000 kg)
A - 7/8" (22mm)
B - 33/64" (13mm)
C - 7/16" (11mm)
D - 9/32" (7mm)
Description
HR forged trigger snap shackle with swivel shackle
The opening is made by hand (low load) or by using a release fid
Allows to attach a non spliced sheet.
Free rotation of the snap shackle thanks to the swivel
Outstanding working and breaking loads
Applications
Trigger snap shackle requiring no splicing sheet
Many fastening applications: furling systems, deck fitting…
Material
HR stainless steel 17.4 PH
