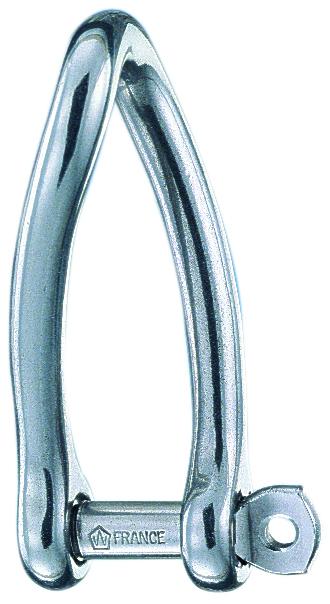

Wichard 3/16" Diameter Twisted Shackle w/ Captive Pin

Item #

1422

Product Description

Wichard 3/16" Diameter Twisted Shackle w/ Captive Pin

Features

  • Weight - 0.051 Lbs

  • Working load - 1058 Lbs

  • Breaking load - 2646 Lbs

  • A - 1 29/64 inch

  • B - 25/64 inch

  • C - 15/64 inch

  • Diameter - 13/64 inch

    Description

  • Captive pin twisted shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • Perfect for application where a 90° angle twist setup is required

  • Often used to attach an unarticulated part (block on a rail) or on purchases

    Material

  • Grade 316L stainless steel
