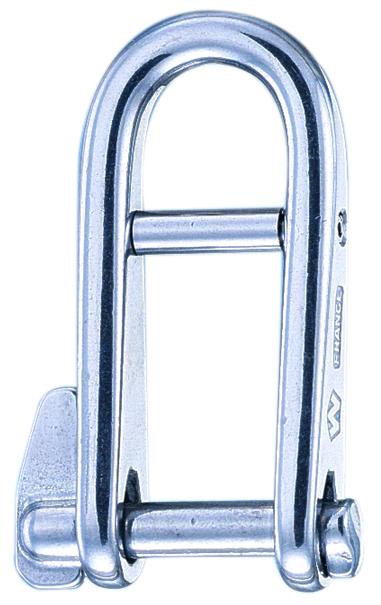

Wichard 3/16" Diameter "HR" Halyard Key Shackle

Item #


Product Description

Wichard 3/16" Diameter "HR" Halyard Key Shackle


  • Weight- 0.068 Lbs

  • Working load- 1058 Lbs

  • Breaking load- 2646 Lbs

  • A- 1 29/64 inch

  • B- 33/64 inch

  • Diameter D- 15/32 inch

  • Diameter- 13/64 inch


  • HR Key pin shackle with bar forged in grade 17.4 Ph stainless steel

  • Halyard or thimble are attached to the eye, no risk to lose the shackle

  • Opening and closing is done simply by rotating the pin half a turn

  • No risk to lose the pin as it remains attached

  • High working and breaking loads

  • Designed to support high loads


  • To be used for high loads applications

  • Perfect product for halyards or applications where the shackle has to be open often

  • To be used with a thimble or a rope


  • HR stainless steel 17.4 PH
