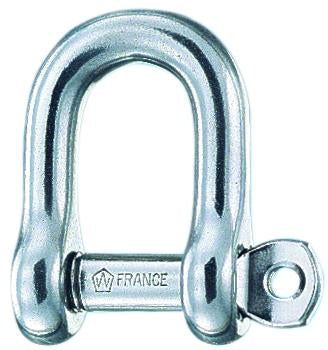

Wichard 3/16" Diameter D Shackle w/ Captive Pin

Item #


Product Description

Wichard 3/16" Diameter D Shackle w/ Captive Pin


  • Weight- 0.035 Lbs

  • Working load- 1058 Lbs

  • Breaking load- 2646 Lbs

  • A- 5/8 inch

  • B- 25/64 inch

  • C- 15/64 inch

  • Diameter- 13/64 inch


  • Captive pin "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety


  • Standard applications of shackle

  • Attachment applications: blocks, head …


  • Grade 316L stainless steel
