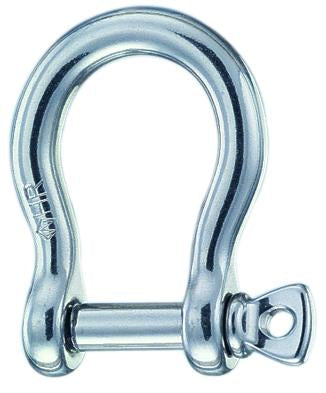

Wichard 25/32" Diameter "HR" Bow Shackle

Item #

11248

Product Description

Wichard 25/32" Diameter "HR" Bow Shackle

Features

  • Weight - 2.229 Lbs (1011 g)

  • Working Load - 19401 Lbs (8800 kg)

  • Breaking Load - 49383 Lbs (28000 kg)

  • A - 3 5/32" (80mm)

  • B - 1 9/16" (40mm)

  • Diameter - 51/64" (20mm)

    Description

  • HR bow shackle forged in grade 17.4 Ph stainless steel

  • High working and breaking loads

  • Designed to support high loads

    Applications

  • For high load applications

  • To be used when ample room is required

  • Possibility to attach several lines or cables

    Material

  • HR stainless steel 17.4 PH
