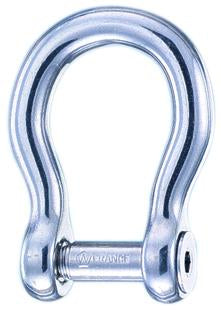

Wichard 1/4" Diameter Allen Head Pin Bow Shackle

Item #


Product Description

Wichard 1/4" Diameter Allen Head Pin Bow Shackle


  • Weight - 0.064 Lbs (29 g)

  • Working Load - 1323 Lbs (600 kg)

  • Breaking Load - 2822 Lbs (1500 kg)

  • A - 1 1/16" (27mm)

  • B - 15/32" (12mm)

  • Diameter- 15/64" (6mm)


  • Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel

  • The pin is locked into one of the indentations

  • The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads


  • Ideal to link chain and anchor

  • On the halyard, avoids to damage the sails

  • To be used when the clutter is reduced

  • To be used when ample room is required


  • Grade 316L stainless steel
