Product Description

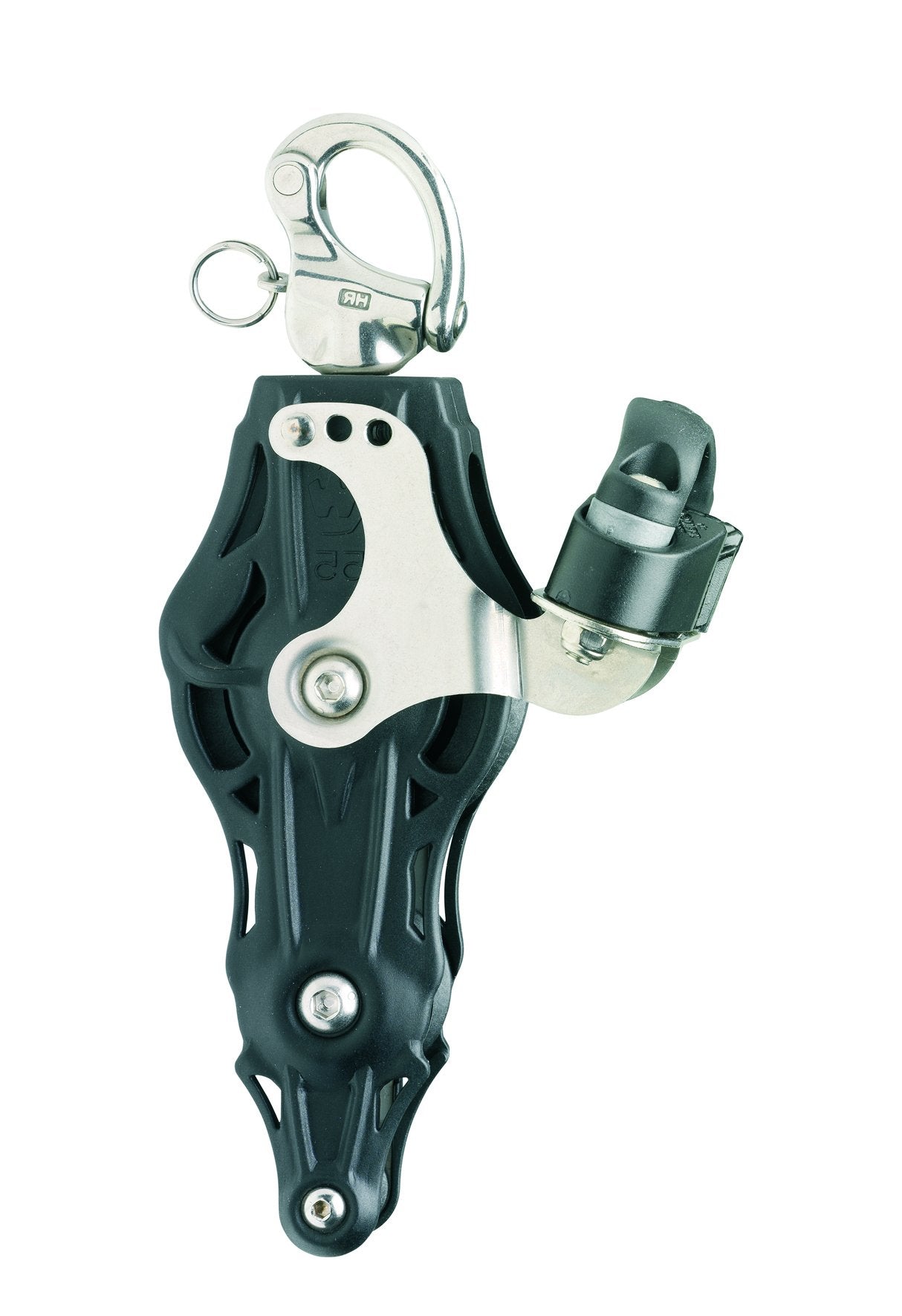

Wichard 1 49/64" (45mm) Fiddle Block w/ Swivel Head Snap Shackle, Becket & Cam Cleat
Features
Weight - 8.9 oz. (252 g)
Sheave Diameter - 1 49/64" (45mm)
Shackle Diameter - 13/64" (5mm)
Length - 6 27/64" (163mm)
Width - 3 25/64" (86mm)
Thickness - 2 13/32" (61mm)
Working Load - 794 Lbs (360 kg)
Breaking Load - 2200 Lbs (1000 kg)
Rope Size - 13/32" (10mm)
Forged Shackle - 13/64" (5mm)
Applications
Mainsheet systems
Boom vangs
Material
Grade 316L stainless steel head configuration
Grade 316L stainless steel load straps
Polycarbonate flanges
Composite saddle for cam models
Composite sheave
