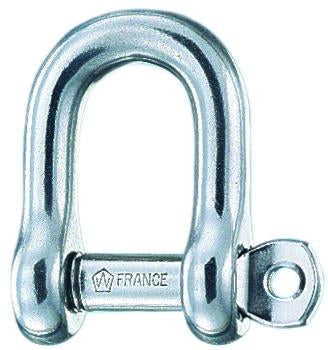

Wichard 13/32" Diameter D Shackle w/ Captive Pin

Item #

1405

Usually ships within 1-3 days

Product Description

Wichard 13/32" Diameter D Shackle w/ Captive Pin

Features

  • Weight- 0.251 Lbs

  • Working load- 3351 Lbs

  • Breaking load- 9171 Lbs

  • A- 1 19/64 inch

  • B- 51/64 inch

  • C- 7/16 inch

  • Diameter- 25/64 inch

    Description

  • Captive pin "D" shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • Standard applications of shackle

  • Attachment applications: blocks, head …

    Material

  • Grade 316L stainless steel
