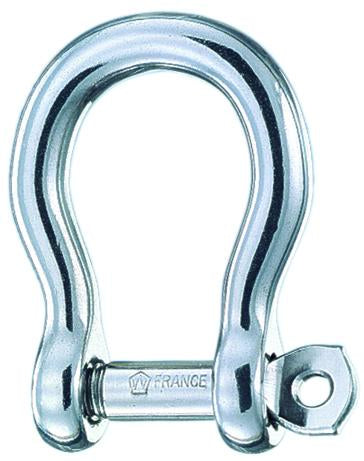

Wichard 13/32" Diameter Bow Shackle w/ Captive Pin

Item #

1445

Product Description

Wichard 13/32" Diameter Bow Shackle w/ Captive Pin

Features

  • Weight - 0.306 Lbs (139 g)

  • Working Load - 3351 Lbs (1520 kg)

  • Breaking Load - 9171 Lbs (5200 kg)

  • A - 1 13/16" (46mm)

  • B - 51/64" (20mm)

  • C - 7/16" (11mm)

  • Diameter - 25/64" (10mm)

    Description

  • Captive pin bow shackle forged in grade 316L stainless steel

  • The pin is connected to the body at all times even when opened

  • The pin is locked into one of the indentations

  • No risks of loose due to vibrations

  • Outstanding working and breaking loads

  • Single handed operation for more safety

    Applications

  • To be used when ample room is required

  • Possibility to attach several lines or cables

    Material

  • Grade 316L stainless steel
