Product Description

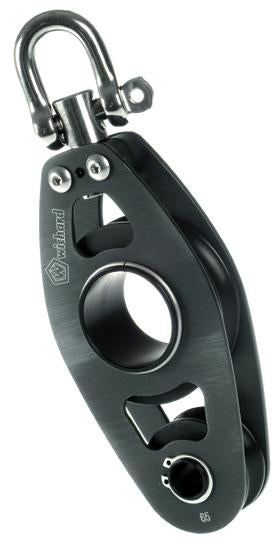

Wichard 1 31/32" (50mm) Roller Fiddle Block w/ Swivel Head
Features:
Weight: 6.1 oz. (174 g)
Sheave diameter: 1 31/32" (50mm)
Shackle diameter: 1/4" (6mm)
Length: 5 1/8" (130mm)
Width: 2 3/64" (52mm)
Thickness: 1 3/32" (28mm)
Working load: 1050 Lbs (480 kg)
Breaking load: 2640 Lbs (1200 kg)
WLL (working load limit): 530 Lbs (240 kg)
Rope size: 5/16"-13/32" (8-10mm)
Forged Shackle: 1/4" (6mm)
Applications
Genoa and spinnaker sheets
Mainsail systems and travelers
Running backstays
Material
Forged swivel head (316L)
Flanges, hubheave, sheave: hard anodized aluminum
Forged shackle (316L)
Delrin rollers
