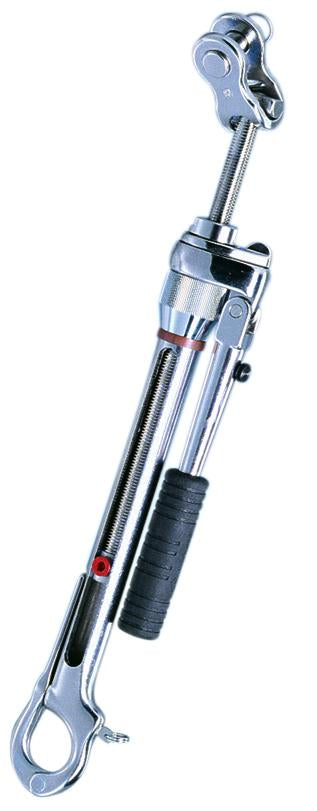

Wichard 1/2" (12mm) Babystay Adjuster w/ Ratchet
Wichard 1/2" (12mm) Babystay Adjuster w/ Ratchet
Regular price
$1,768.37 USD
Regular price
$2,750.80 USD
Sale price
$1,768.37 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Wichard 1/2" (12mm) Babystay Adjuster w/ Ratchet
Features
Weight - 4.075 Lbs (1848 g)
Working Load - 7055 Lbs (3200 kg)
Breaking Load - 13200 Lbs (6000 kg)
Description
Ideal for fitting a removable inner forestay (genoa or solent)
Easy to install thanks to the snap shackle
Robust and performant
Strongly recommended when there is a furling system
The ratchet model offers great comfort and ease of use during operations.
Technical Data:
Length pin to pin closed / open: 360 / 520 mm
Toggle length x width: 17 x 22 mm
Pin diameter: 1/2" (12mm)
Stud diameter: 9/16" (14mm)
For wire diameter: 7 / 8 / 9 mm
Applications
Installation of a babystay adjuster to set up a solent, genoa ….
Improve the overall performance of the boat (especially those equipped with a reefing-furling system)
Material
Grade 316L stainless steel
HR stainless steel snap shackle (17.4 PH)
Linked Products
Babystay tang
Double folding pad eye
Threaded eye hook.
Eye straps
