Tylaska T40 Clevis Bail Snap Shackle

Item #

TY1040-CR

Product Description

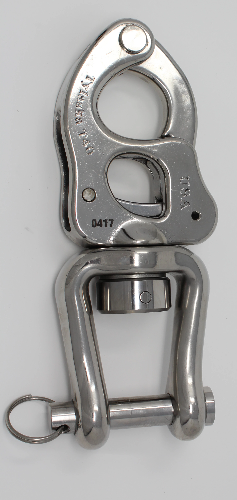

Tylaska T40 Clevis Bail Snap Shackle

Tylaska T40 Snap Shackles are designed for massive sailboats or for towing or individual applications. With a breaking strength of 40,000 pounds, this shackle can handle sail loads on the largest of sailboats. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications

  • Safe Working Load(lb.) - 20,000 (9,070kg)

  • Breaking Strength(lb.) - 40,000 (18,140kg)

  • Boat Size(ft.) - 100' + Maxi Boats

  • Weight - 6.3lbs (2.87kg)

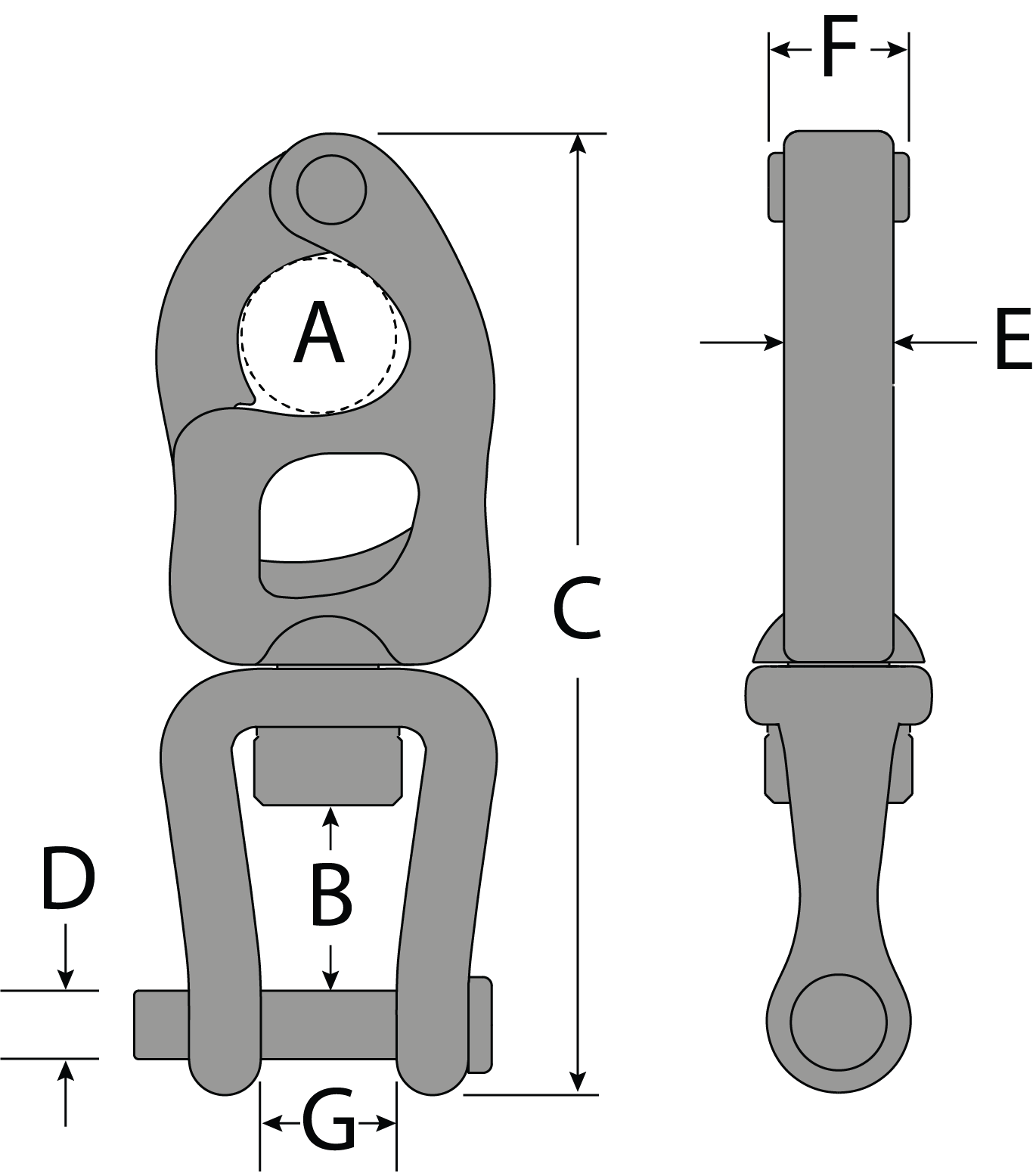

    Dimensions

  • A - 1.75" (44.5mm)

  • B - 2.00" (50.8mm)

  • C - 10.12" (257mm)

  • D - 0.75" (19mm)

  • E - 1.12" (28.5mm)

  • F - 1.39" (35.3mm)

  • G - 1.50" (38.1mm)
