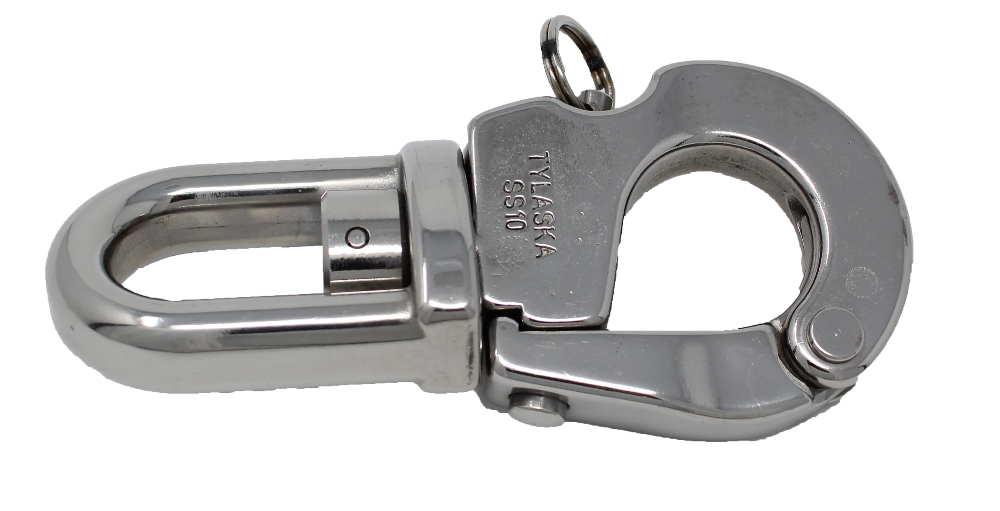

Tylaska SS10 Plunger Style Snap Shackle

Item #

TY2010

Product Description

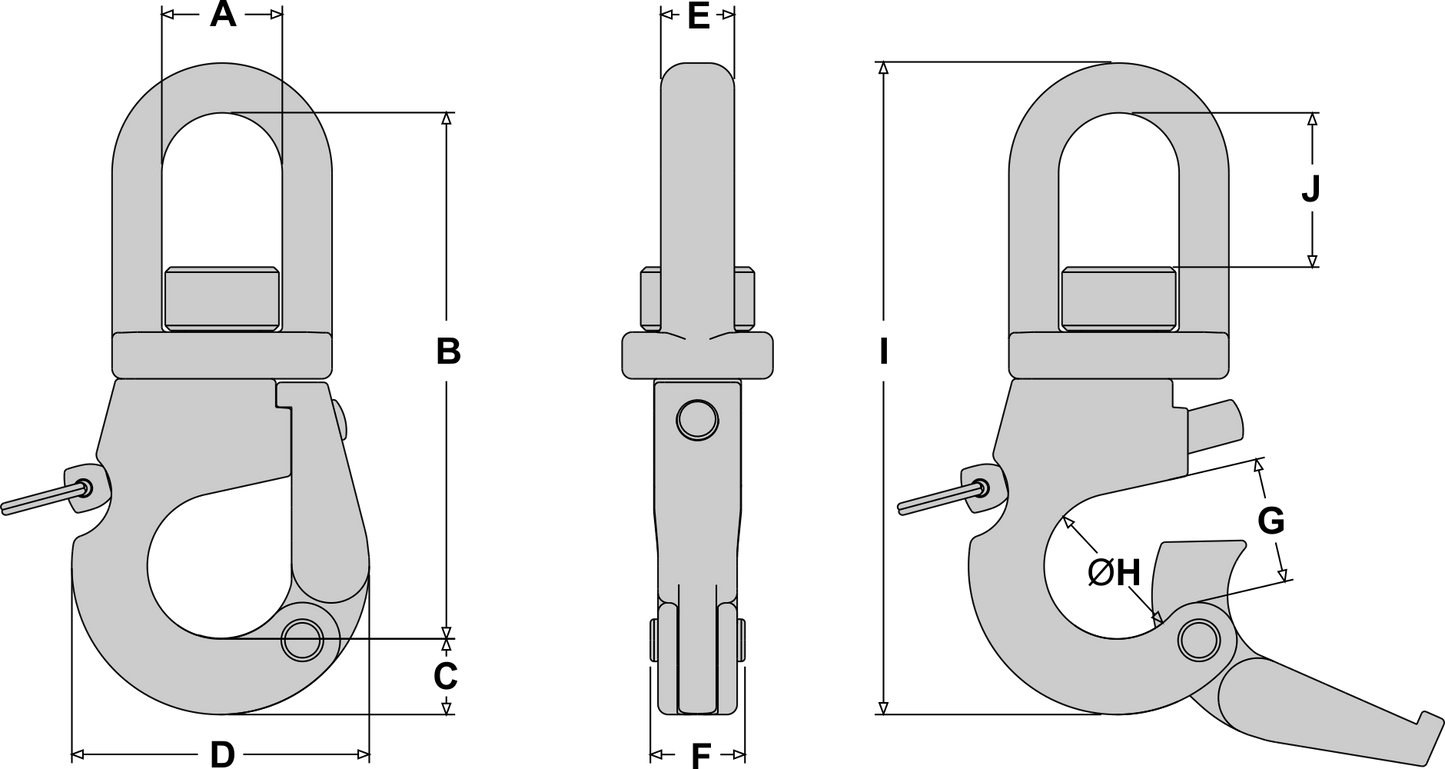

Tylaska SS10 Plunger Style Snap Shackle

Tylaska’s line of SS plunger pin style shackles were developed based on the original tried-and-true Sparcraft SS20 design. Through rigorous testing and optimization, Tylaska has improved upon the original design to increase the reliability, functionality, and fatigue life of the shackles. In addition to the optimized SS20L, Tylaska also offers two scaled versions of the shackle; the smaller SS10 and the larger SS40L. The SS20L and SS40L are fully traceable and bare the CE mark denoting their approval for use as lifting accessories. The SS10 is intended for static load applications only and is NOT approved for lifting applications.

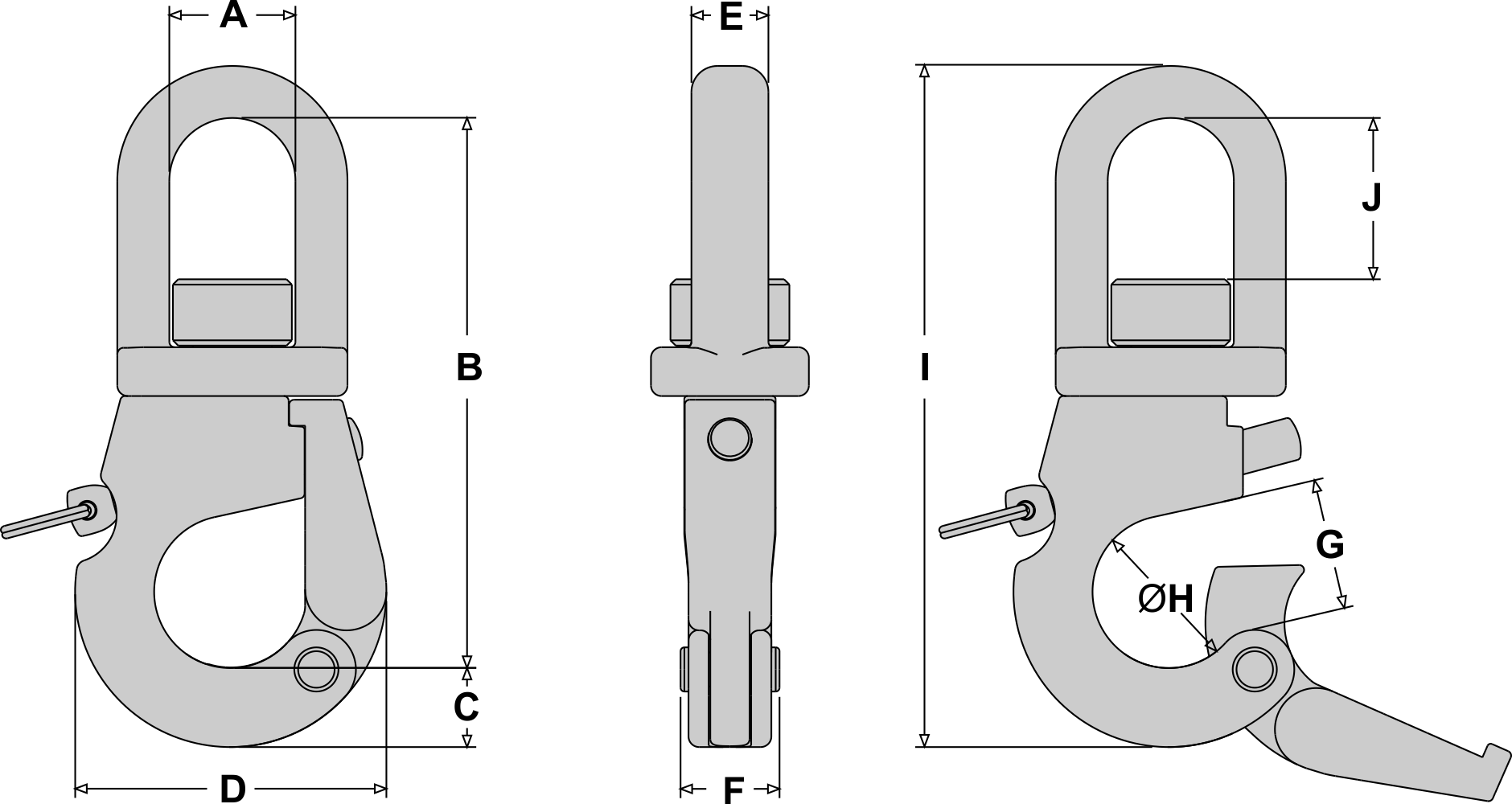

Specifications:

  • A - .91in (23.1mm)

  • B - 4.37in (111.1mm)

  • C - 0.37in (9.3mm)

  • D - 2.14in (54.4mm)

  • E - 0.53in (13.5mm)

  • F - 0.65in (16.4mm)

  • G - 0.93in (23.7mm)

  • H - 1.09in (27.7mm)

  • I - 4.73in (120.1mm)

  • J - 1.13in (28.7mm)

  • Weight - 1.56lbs (0.71kg)

  • Work Load - 10,000lbs (4,536kg)

  • Breaking Strength - 20,000lbs (9,072kg)

    The Tylaska SS10 Snap Shackle comes in the standard bail configuration and is a high strength positive locking plunger pin shackle. It is designed for those applications not requiring it to be released under load.
