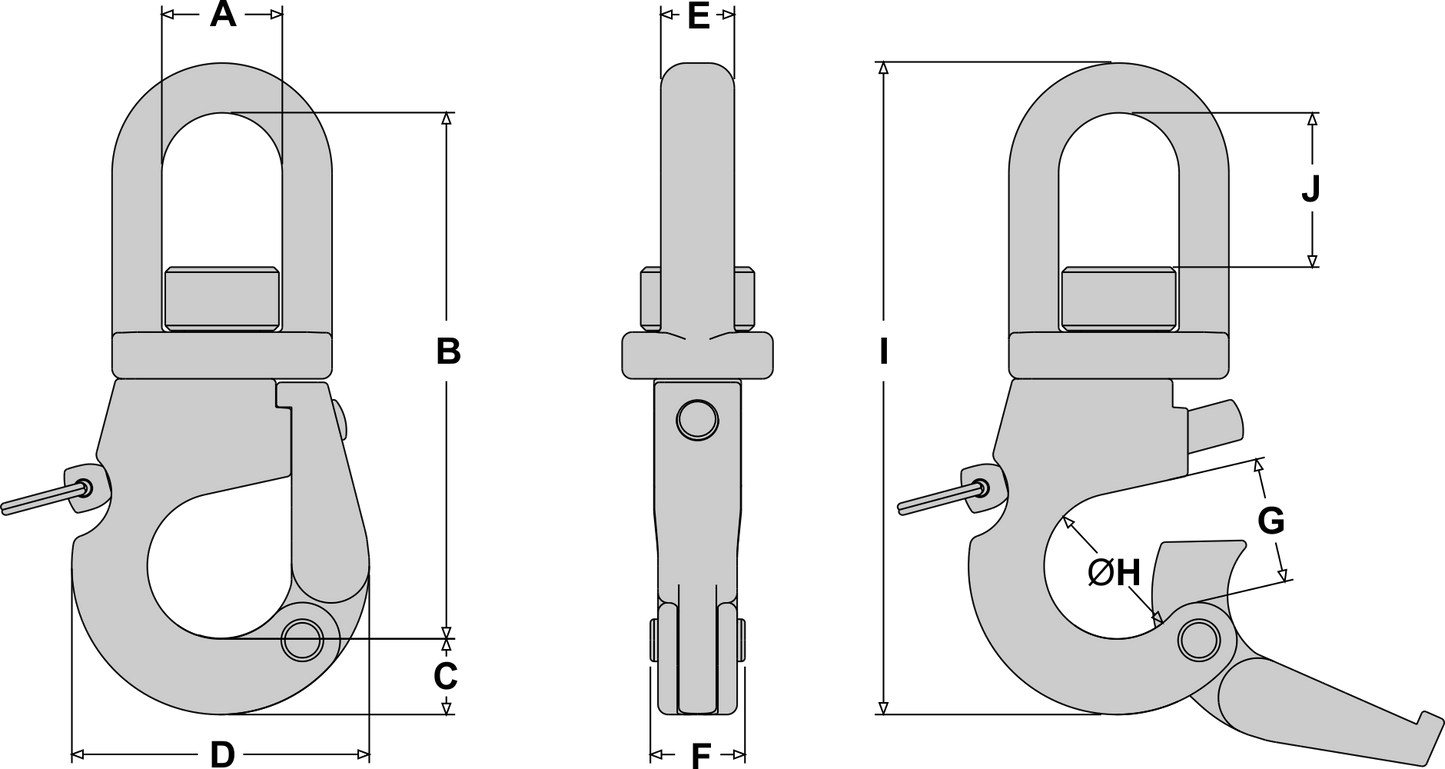

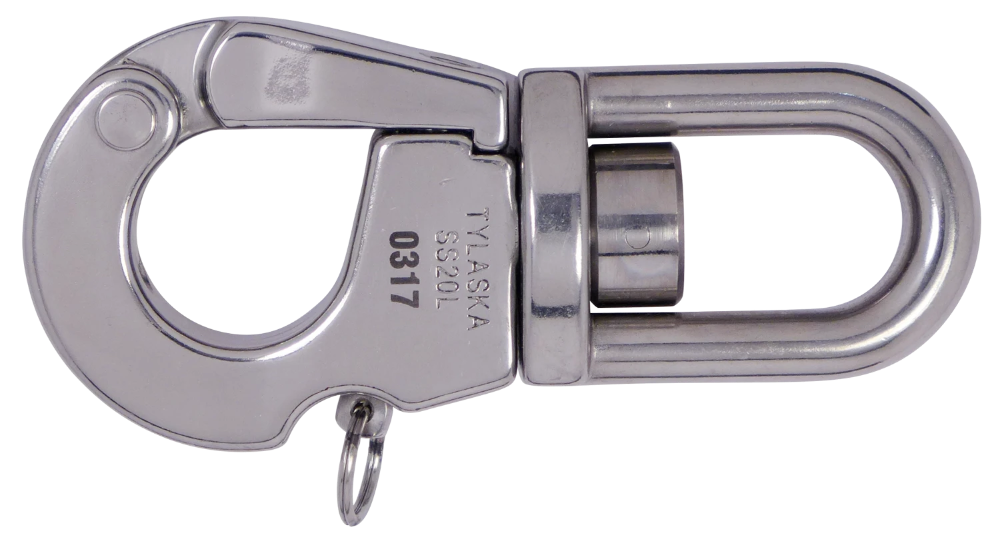

Tylaska SS20 Plunger Style Snap Shackle

Item #

TY2020L-S

Product Description

Tylaska SS20 Plunger Style Snap Shackle

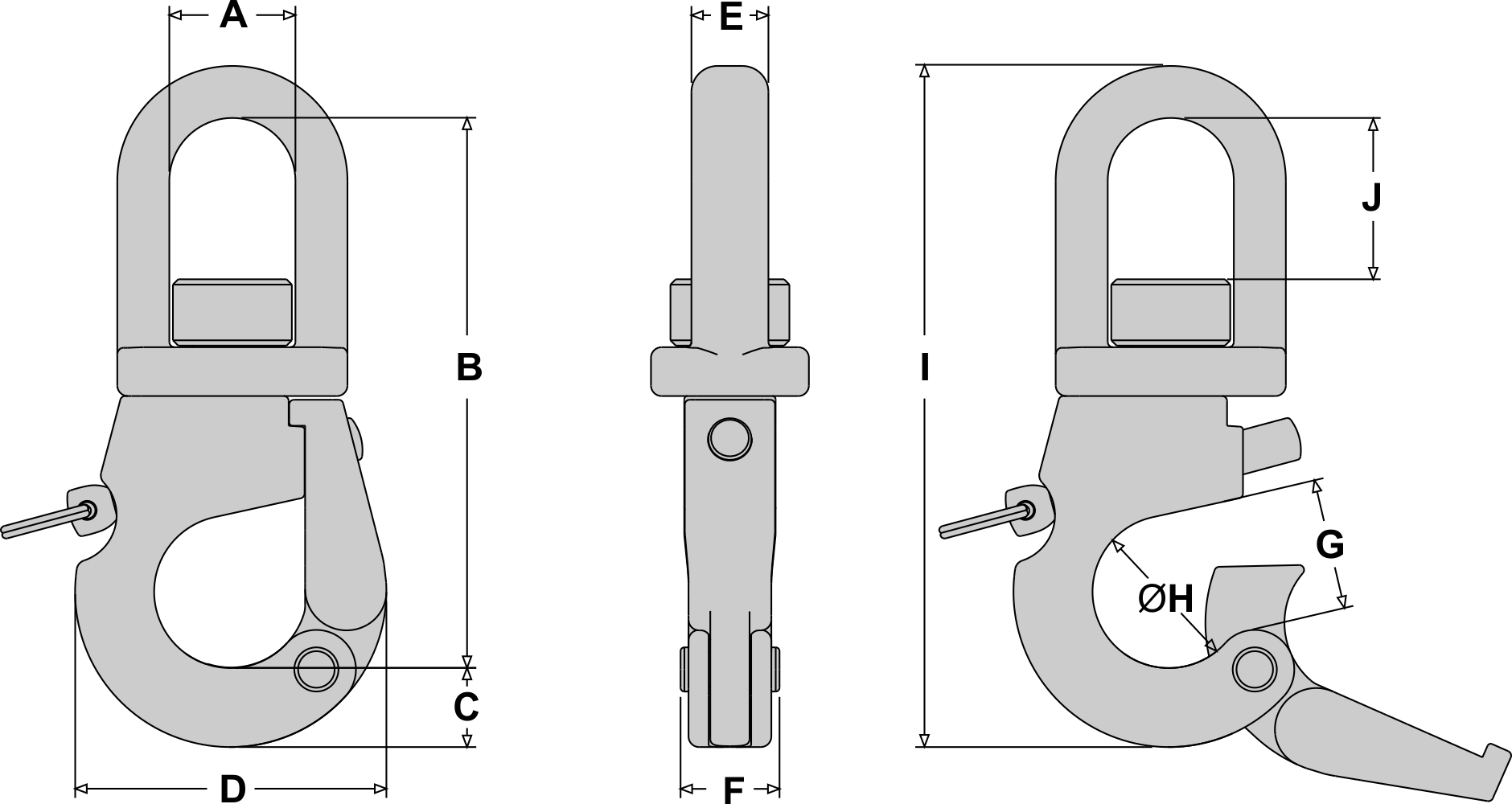

Specifications:

  • A - 1.10in (28mm)

  • B - 1.375in (35mm)

  • C - 6.125in (155mm)

  • Weight - 37oz. (2.25Lb)

  • Work Load - 20,000Lb (9,071Kg)

  • Breaking Strength - 40,000Lb (18,143Kg)

    The Tylaska SS20 Snap Shackle is a larger high strength positive locking plunger pin shackle.

    It relies on a plunge pin for those applications that don‘t need the ability to be released under load.

    It has a breaking strength of 40,000 lbs., a working strength of 20,000 lbs. and comes in the standard bail configuration.
  •
