Tylaska SP10 Trigger Style Snap Shackle

Item #

TY2110

Product Description

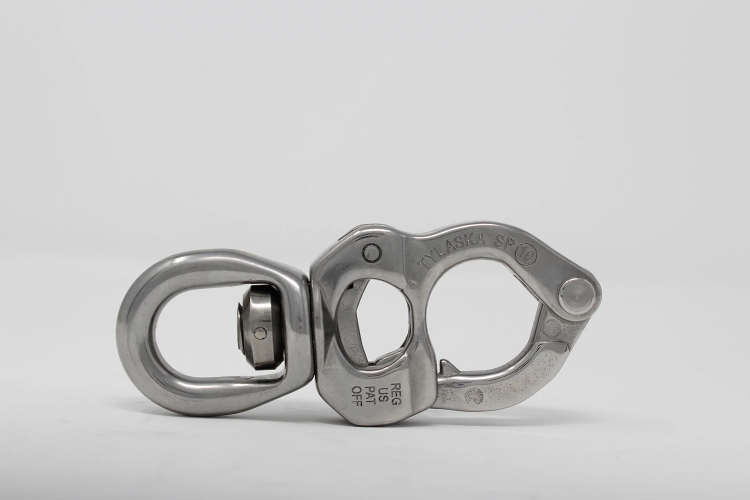

Tylaska SP10 Trigger Style Snap Shackle

Tylaska’s SP snap shackles are a retrofit of the old Sparcraft designed trigger release snap shackles. Made from the same durable 17-4PH stainless as before, the castings are now hipped to create a finished part similar to a forging in strength and metal consistency. While not as capable of high-load releases as the T shackle, the SP shackle is still a high quality and rugged shackle that lives up to the Tylaska name it carries. SP snap shackles offer a larger eye and are a more economic choice when compared with their T shackle counterparts.

Specifications:

  • A - .875in (22mm)

  • B - .875in (22mm)

  • C - 5.000in (127mm)

  • Weight - 11.4oz (.64Lb)

  • Work Load - 10,000Lb (4,535Kg)

  • Breaking Strength - 20,000Lb (9,071Kg)

    Tylaska has also revived the old #10 snap shackle and has renamed the time proven design the Tylaska SP10.

    From the windy waters off Sardina to the rough and trying seas for 12-Meters off of Freemantle, the #10 has been there.

    This shackle has been the workhorse of most major races for decades.

    Made from investment cast and hipped 17-4PH stainless and suitable for boats 50’ to 100’.
  •
