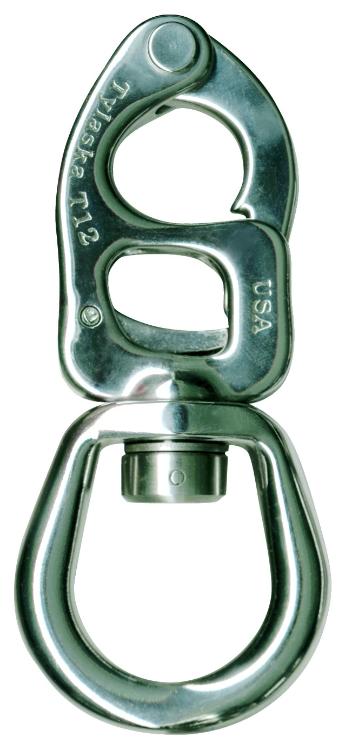

Tylaska 4 1/2" T12 Large Bail Snap ShackleShackle Type - T12 Large Bail
Tylaska T12 Snap Shackles are perfect for applications requiring immense strength and low weight. They have a breaking strength of 12,000 pounds and weigh only 5.9 ounces in the standard bail configuration. Ideal for 30 to 45 foot boats. The T12 standard and large bail snap shackles are available with a decorative bronze PVD or black oxide finish.
Safe Working Load(lb.) - 6,000 (2,720kg)
Breaking Strength(lb.) - 12,000 (5,440kg)
Boat Size(ft.) - 30' - 45'
Weight(oz.) - 8.1 (230g)

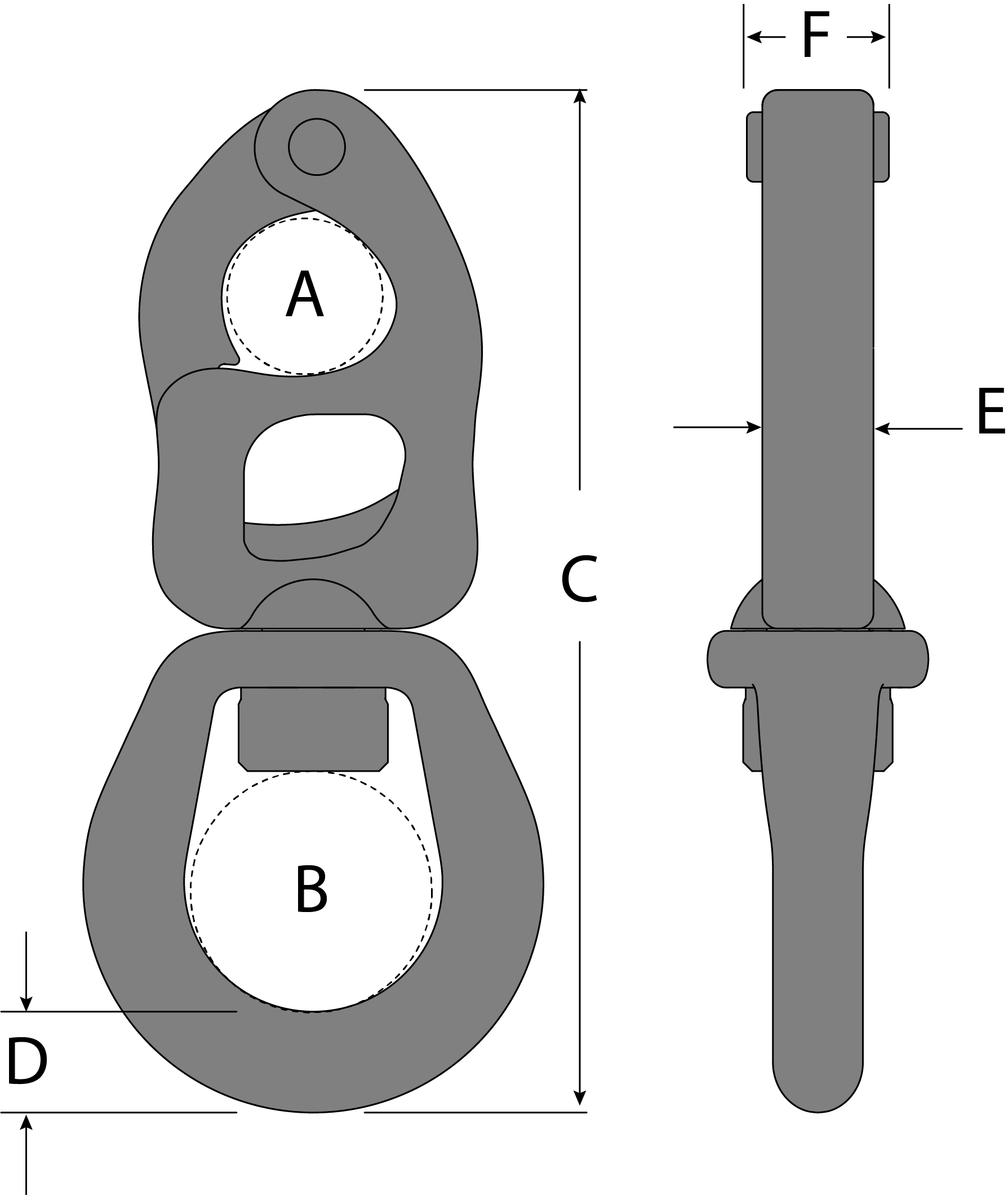

A(in.) - 0.71" (18mm)
B(in.) - 1.11" (28.3mm)
C(in.) - 4.62" (117.3mm)
D(in.) - 0.45" (11.4mm)
E(in.) - 0.44" (11.1mm)
F(in.) - 0.63" (16mm)
