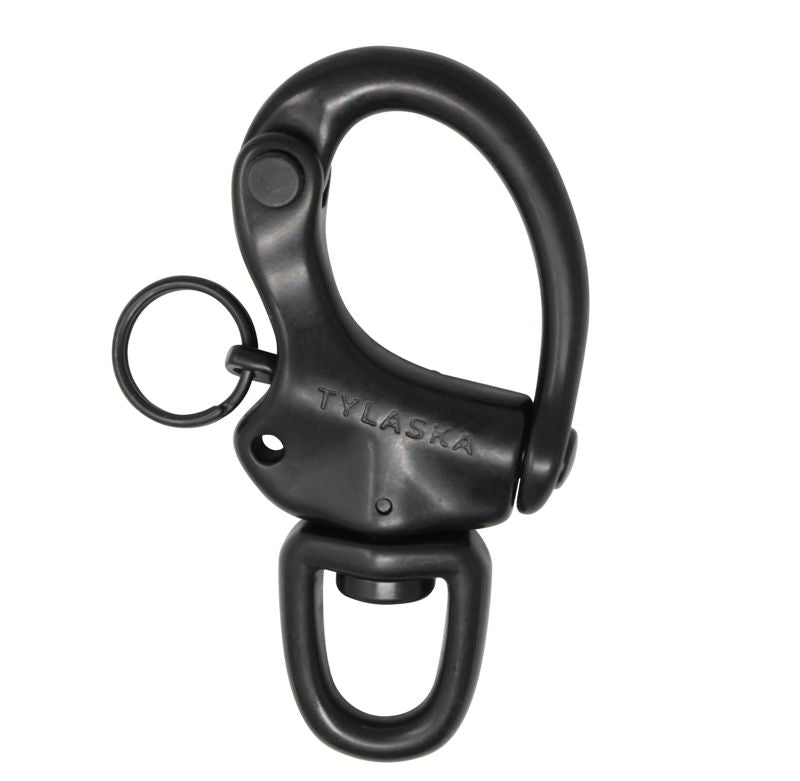

Tylaska CR8 Fixed Bail Snap Shackle with Black Oxide Finish
Tylaska CR8 Fixed Bail Snap Shackle with Black Oxide Finish
Regular price
$91.97 USD
Regular price
$122.62 USD
Sale price
$91.97 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Tylaska CR8 Fixed Bail Snap Shackle with Black Oxide Finish
Specifications
Bail Type - Fixed Bail
Safe Working Load(lb.) - 4,410 (2,000kg)
Breaking Strength(lb.) - 8,820 (4,000kg)
Weight(oz.) - 3.5oz (99g)
Dimensions
A(in.) - 0.96" (24.4mm)
B(in.) - 0.74" (18.7mm)
C(in.) - 3.17" (80.5mm)
D(in.) - 1.74" (44.2mm)
E(in.) - 0.24" (6.1mm)
F(in.) - 0.54" (13.7mm)
The CR snap shackle incorporates the extreme strength, outstanding corrosion resistance, and aerospace quality of Tylaska’s high performance racing hardware at a price that the cruiser or casual racer will find appealing.
Unlike many plunger-pin snap shackles that are prone to catching on stays, the sleek geometry of the CR shackle has been optimized to reduce the risk of snagging and fouling.
The locking hole feature allows the plunger pin to be locked in place using a small line or zip tie. Useful in extreme conditions where snap shackles have been known to release due to severe flogging.
