Tylaska Grand Prix XD Pole End

Item #

TY2303-XD

Product Description

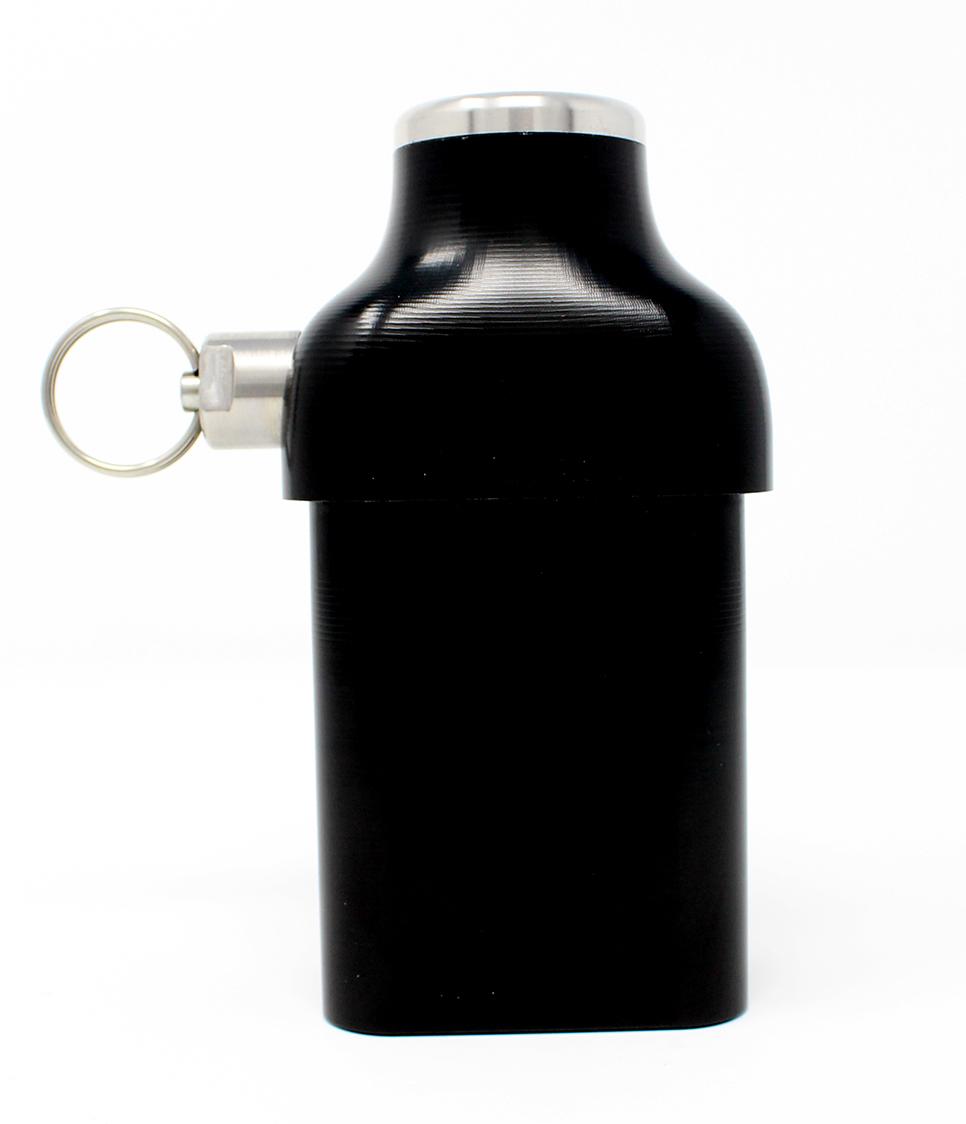

Tylaska Grand Prix XD Pole End

To handle the highest compression loads, Tylaska Hardware offers a machined inboard spinnaker pole end – the Grand Prix. Machined of high strength aluminum alloy with a stainless steel load bearing collar and pin, these fittings meet the highest demands. The fitting interiors are hollowed out to further reduce weight. They have the beauty of hard coat anodized black for our customers where aesthetics is of high importance. Recent refinements lowered the pin’s profile to avoid snagging the jib sheets during tacks.

This fitting can provide the solution for yachts from 30 to 80 feet LOA.

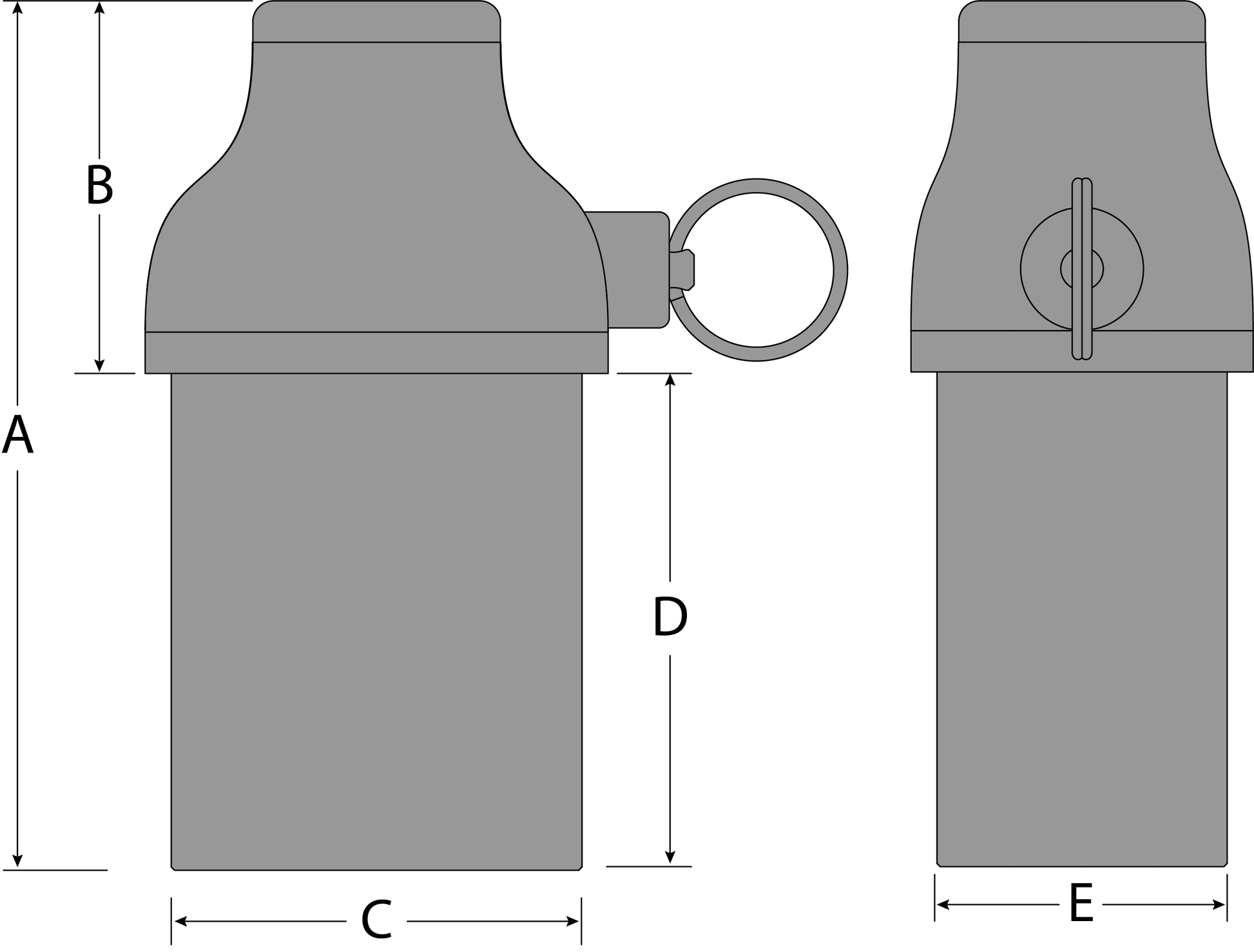

Specifications:

  • A - 5.25" (133m)

  • B - 2.25" (57mm)

  • C - 2.50" (63.5mm)

  • D - 3.00" (76mm)

  • E - 1.75" (44.5mm)
