Product Description

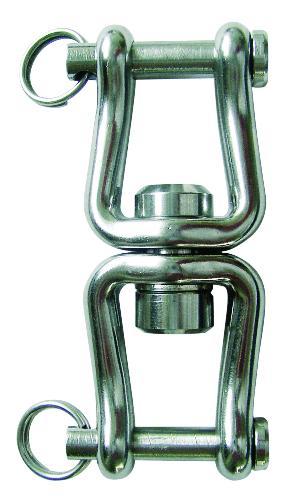

Tylaska 8 3/16" T40 Clevis/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T30 Clevis Bail/Clevis Bail Swivel
Safe Working Load(lb.) - 20,000 (9,070kg)
Breaking Strength(lb.) - 40,000 (18,140kg)
Weight(oz.) - 69

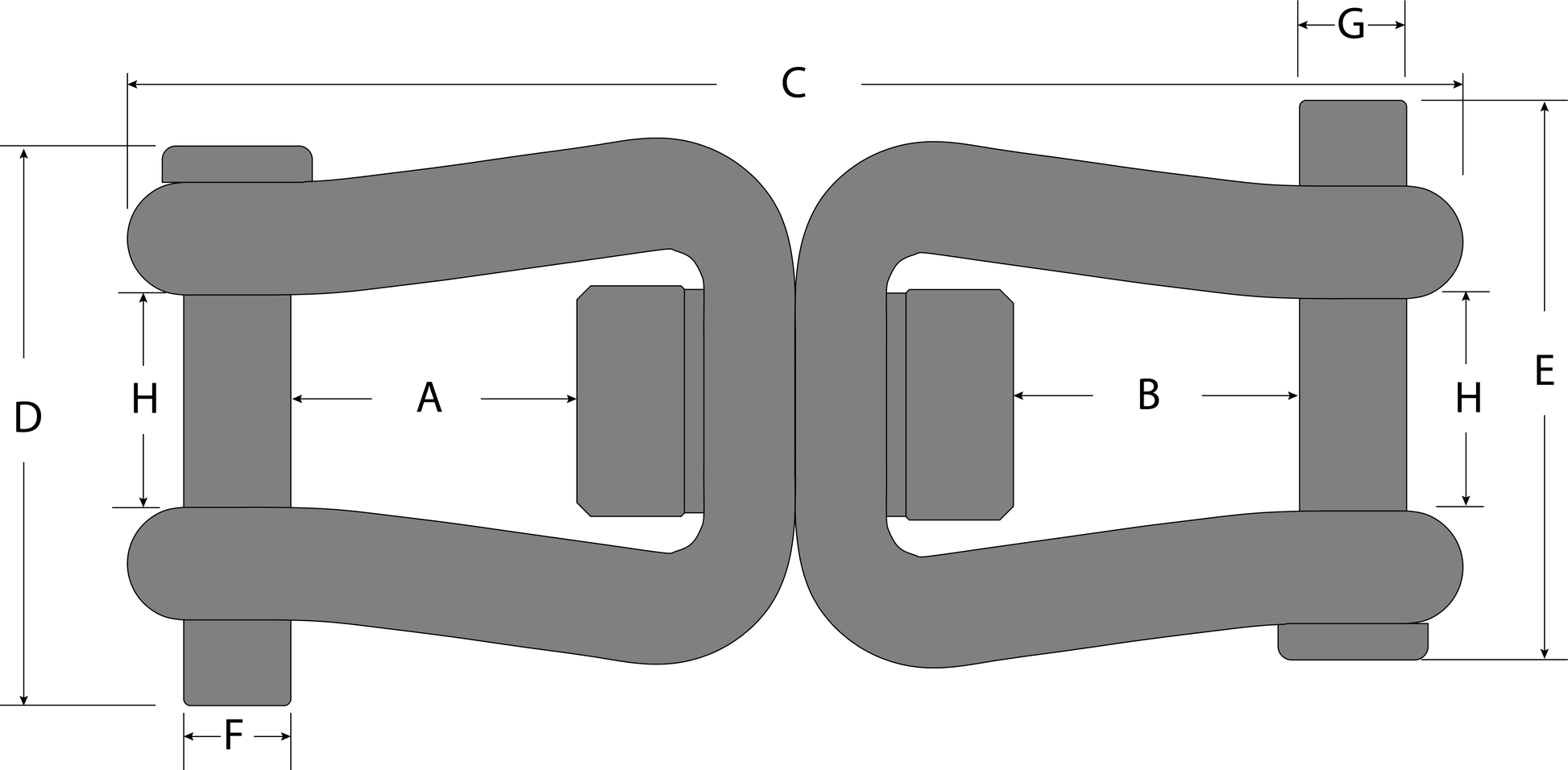

Dimensions
A(in.) - 2.00" (50.8mm)
B(in.) - 2.00" (50.8mm)
C(in.) - 9.44" (239.8mm)
D(in.) - 3.90" (99.1mm)
E(in.) - 3.90" (99.1mm)
F(in.) - 0.75" (19.1mm)
G(in.) - 0.75" (19.1mm)
H(in.) - 1.50" (38.1mm)
