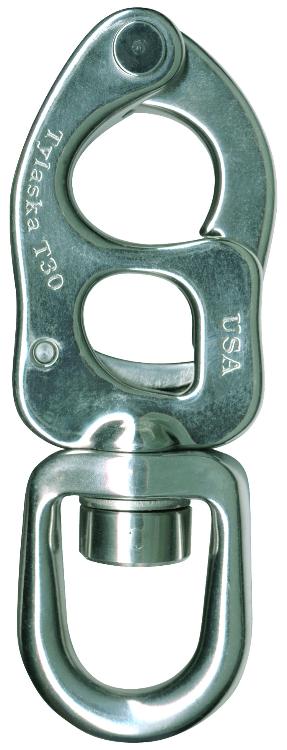

Tylaska 6 3/8" T30 Standard Bail Snap Shackle

Tylaska 6 3/8" T30 Standard Bail Snap Shackle

Tylaska T30 is designed for large sailboats that need to support strong loads. With a breaking strength of 30,000 pounds, this shackle can handle sail loads on the largest of sailboats. A number of around-the-world racing teams utilize the T30.

Specifications

Safe Working Load(lb.) - 15,000 (6,800kg)

Breaking Strength(lb.) - 30,000 (13,610kg)

Boat Size(ft.) - 60'+

Weight(oz.) - 26.8 (760g)

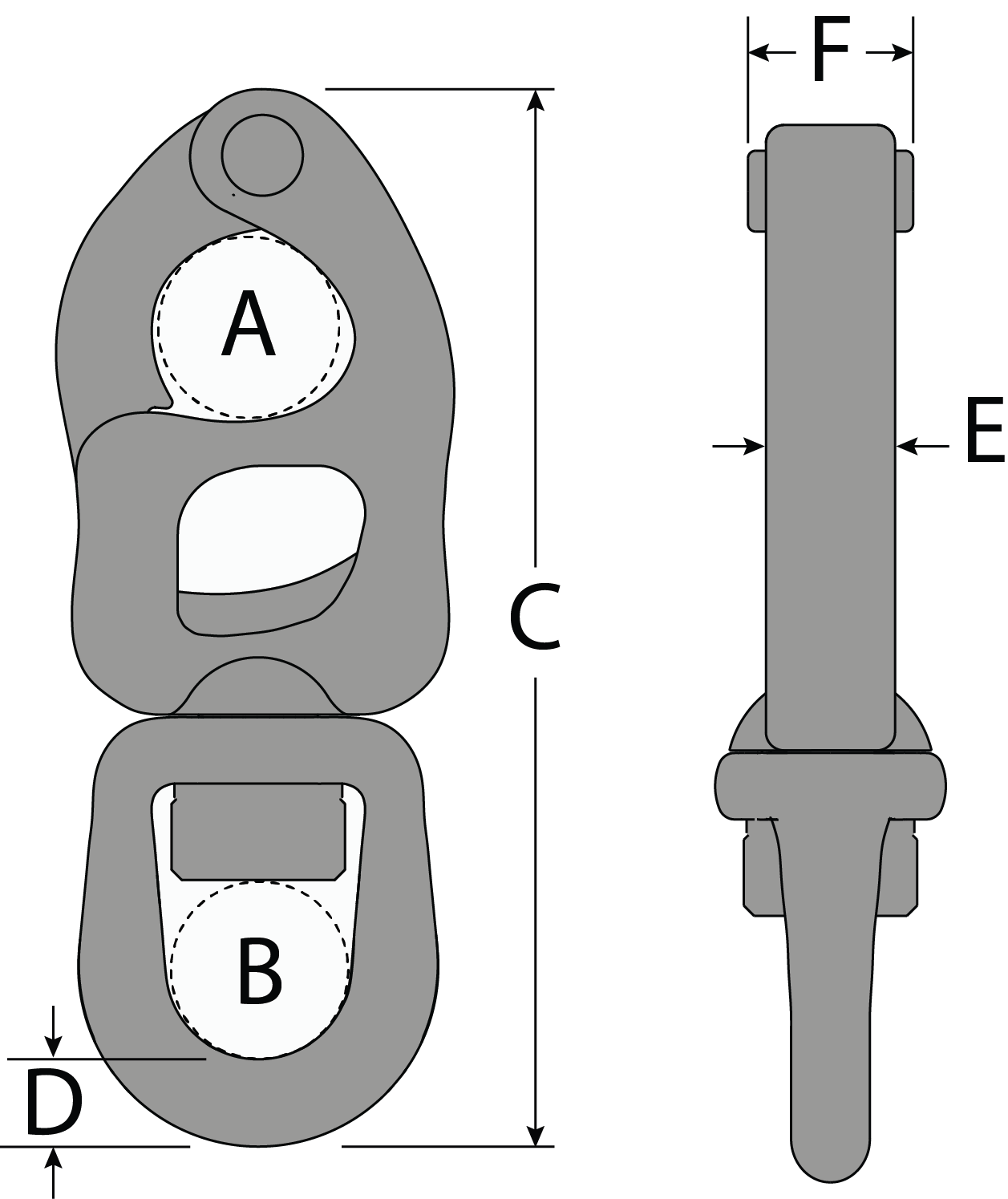

Dimensions

A(in.) - 1.23" (31.2mm)

B(in.) - 1.20" (30.5mm)

C(in.) - 6.55" (166.4mm)

D(in.) - 0.56" (14.2mm)

E(in.) - 0.77" (19.6mm)

F(in.) - 0.97" (24.7mm)
