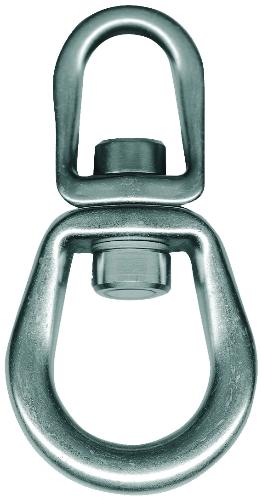

Tylaska 6 1/4" T30 Standard/Large Bail Swivel

Item #

TY1230-SL

Product Description

Tylaska 6 1/4" T30 Standard/Large Bail Swivel

Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T30 Std/Large Bail Swivel

  • Safe Working Load(lb.) - 15,000 (6,800kg)

  • Breaking Strength(lb.) - 30,000 (13,610kg)

  • Weight(oz.) - 27.6

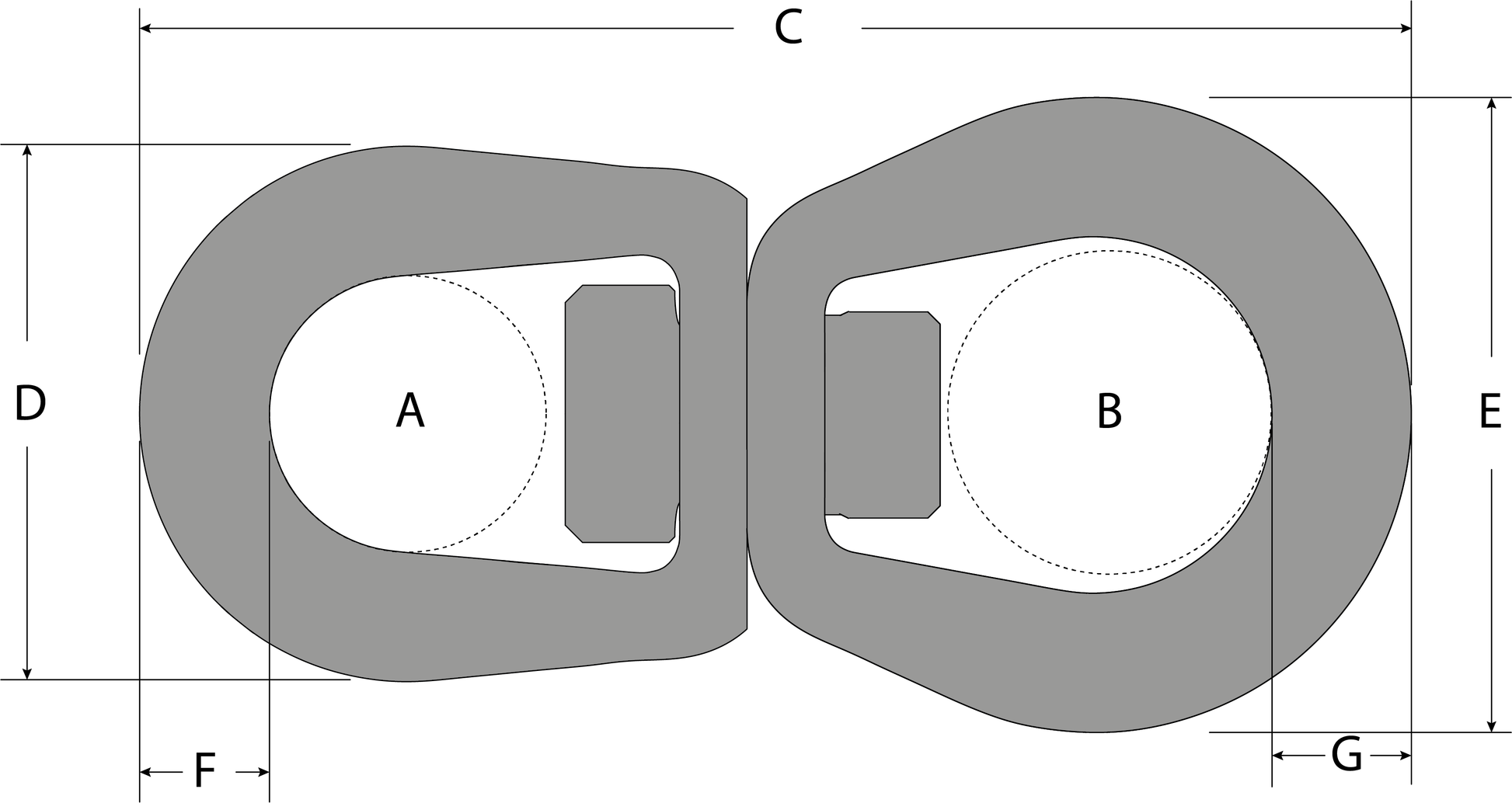

    Dimensions

  • A(in.) - 1.20" (30.5mm)

  • B(in.) - 1.76" (44.8mm)

  • C(in.) - 6.31" (160.3mm)

  • D(in.) - 2.28" (57.9mm)

  • E(in.) - 3.37" (85.6mm)

  • F(in.) - 0.55" (26mm)

  • G(in.) - 0.74" (18.8mm)
