Tylaska 6 1/8" T30 Clevis/Clevis Bail Swivel

Item #

TY1230-CC

Product Description

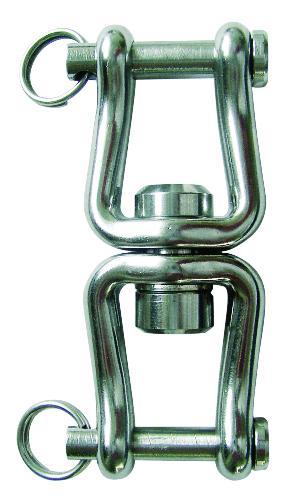

Tylaska 6 1/8" T30 Clevis/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T30 Clevis Bail/Clevis Bail Swivel

  • Safe Working Load(lb.) - 15,000 (6,800kg)

  • Breaking Strength(lb.) - 30,000 (13,610kg)

  • Weight(oz.) - 29.1

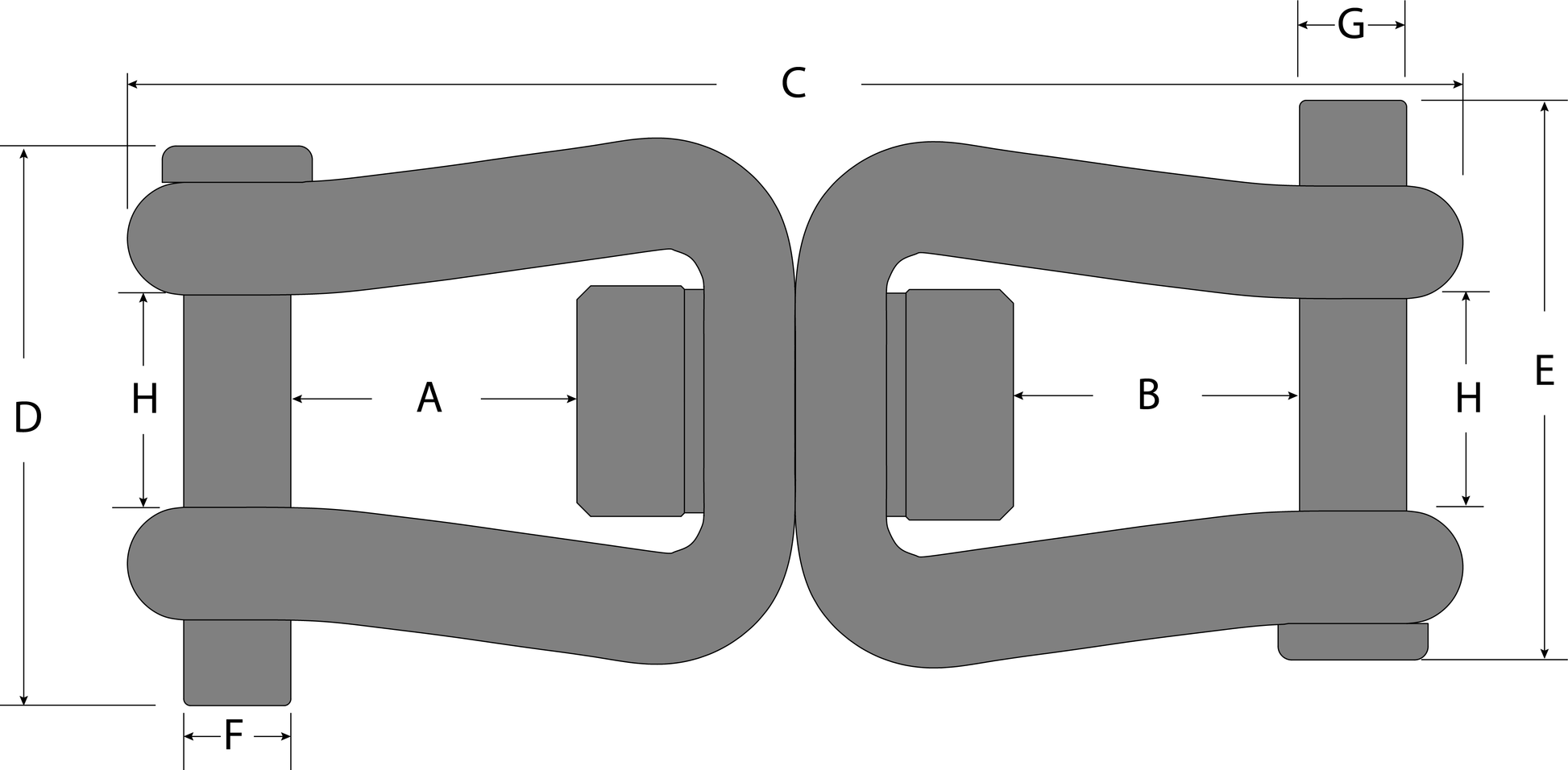

    Dimensions

  • A(in.) - 1.29" (32.8mm)

  • B(in.) - 1.29" (32.8mm)

  • C(in.) - 6.28" (159.5mm)

  • D(in.) - 2.60" (66mm)

  • E(in.) - 2.60" (66mm)

  • F(in.) - 0.56" (14.2mm)

  • G(in.) - 0.56" (14.2mm)

  • H(in.) - 1.06" (16.9mm)
