Tylaska

Tylaska 5 1/8" T20 Clevis/Clevis Bail Swivel

Tylaska 5 1/8" T20 Clevis/Clevis Bail Swivel

$205.49 USD
$273.99 USD $205.49 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

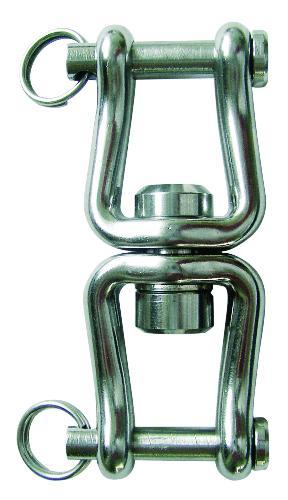

Tylaska 5 1/8" T20 Clevis/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T20 Clevis Bail/Clevis Bail Swivel

  • Safe Working Load(lb.) - 10,000 (4,540kg)

  • Breaking Strength(lb.) - 20,000 (9,070kg)

  • Weight(oz.) - 17.1

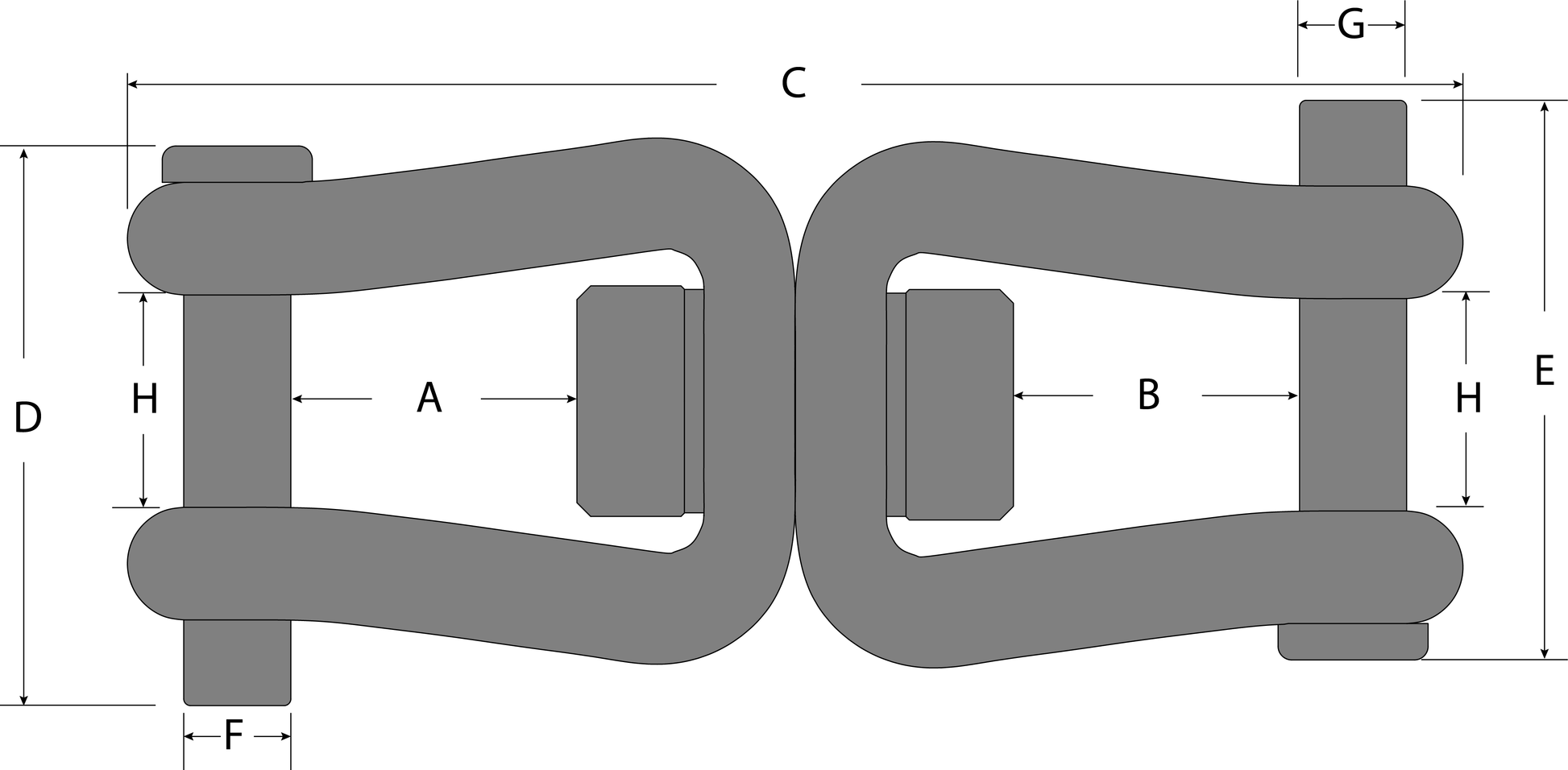

    Dimensions

  • A(in.) - 1.13" (28.7mm)

  • B(in.) - 1.13" (28.7mm)

  • C(in.) - 5.04" (128mm)

  • D(in.) - 2.16" (54.9mm)

  • E(in.) - 2.16" (54.9mm)

  • F(in.) - 0.43" (10.9mm)

  • G(in.) - 0.43" (10.9mm)

  • H(in.) - 0.84" (21.3mm)
