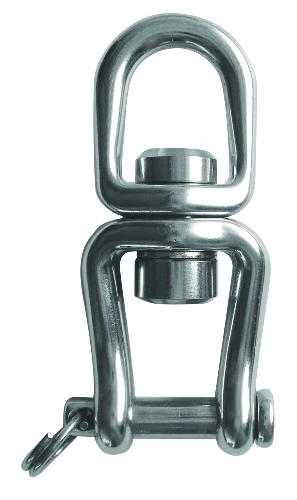

Tylaska 4 3/4" T20 Standard/Clevis Bail Swivel

Item #

TY1220-SC

Product Description

Tylaska 4 3/4" T20 Standard/Clevis Bail Swivel

Specifications

Shackle Type - T20 Standard/Clevis Bail Swivel

  • Safe Working Load - 10,000 (4,545 kg)

  • Breaking Strength - 20,000 (9,091 kg)

  • Weight - 13.6 oz. (385 gm)

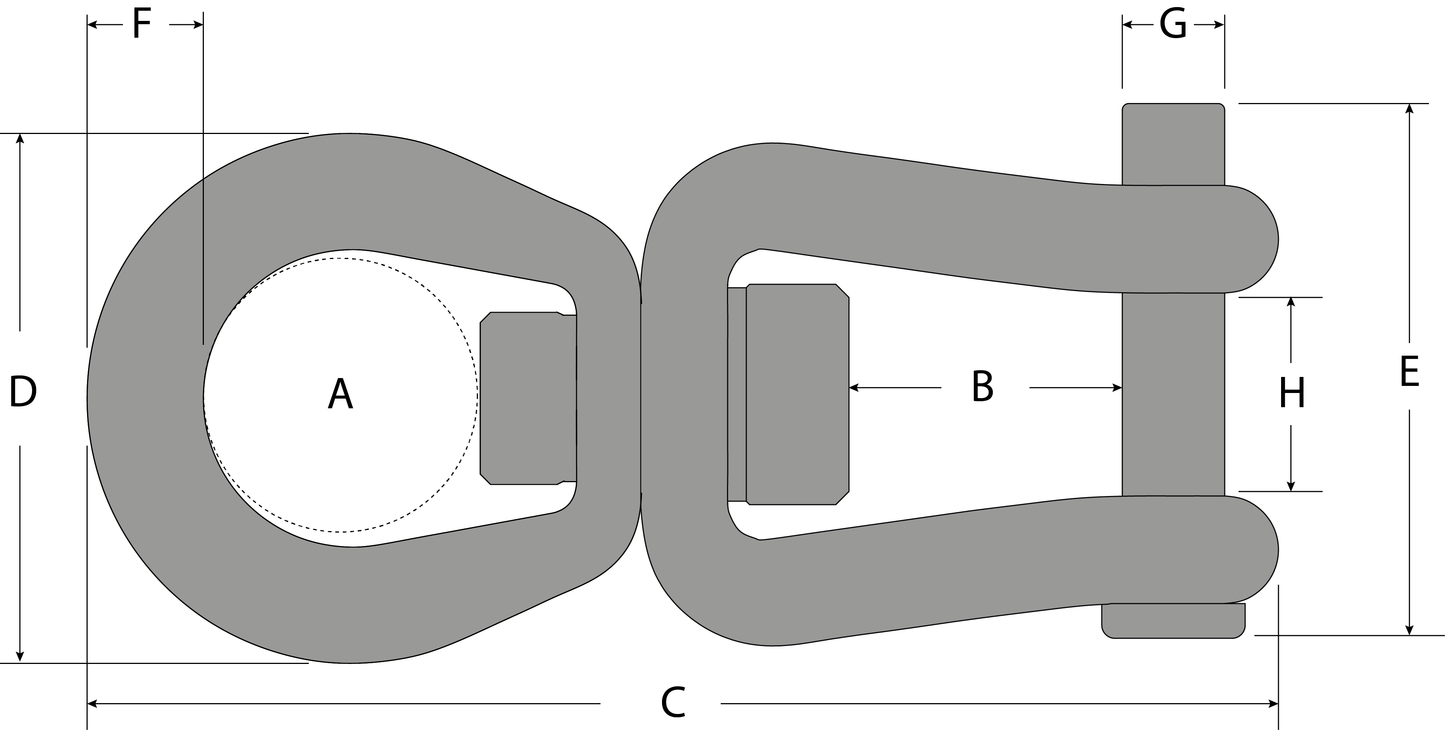

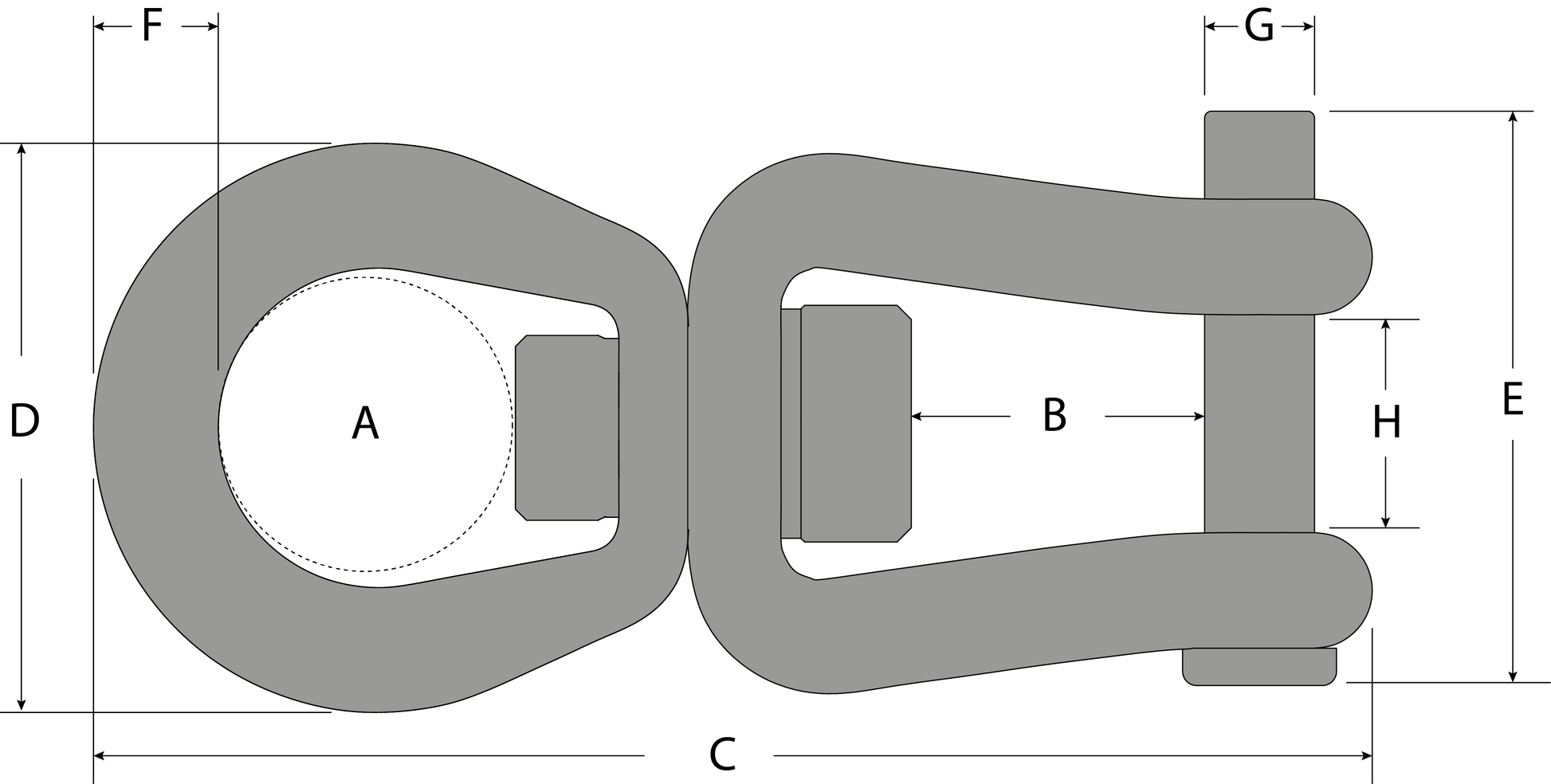

    Dimensions

  • A - 1 3/32" (27.8 mm)

  • B - 31/32" (24.6 mm)

  • C - 1 1/16" (27 mm)

  • D - 7/8" (22.2 mm)

  • E - 4 3/4" (121 mm)
