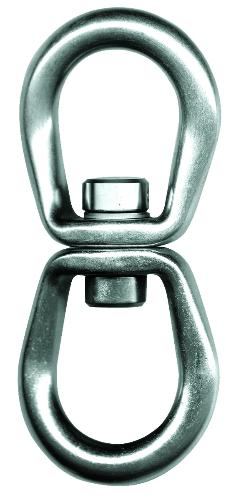

Tylaska 4 9/32" T12 Large/Large Bail Swivel

Item #

TY1212-LL

Product Description

Tylaska 4 9/32" T12 Large/Large Bail Swivel

Large Bails provide room for up to three additional shackles or a combination of shackles and lines. Ideal for spinnaker sheets, guys or other multi-line applications.

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T12 Large/Large Bail Swivel

  • Safe Working Load(lb.) - 6,000 (2,720kg)

  • Breaking Strength(lb.) - 12,000 (5,440kg)

  • Weight(oz.) - 7.6

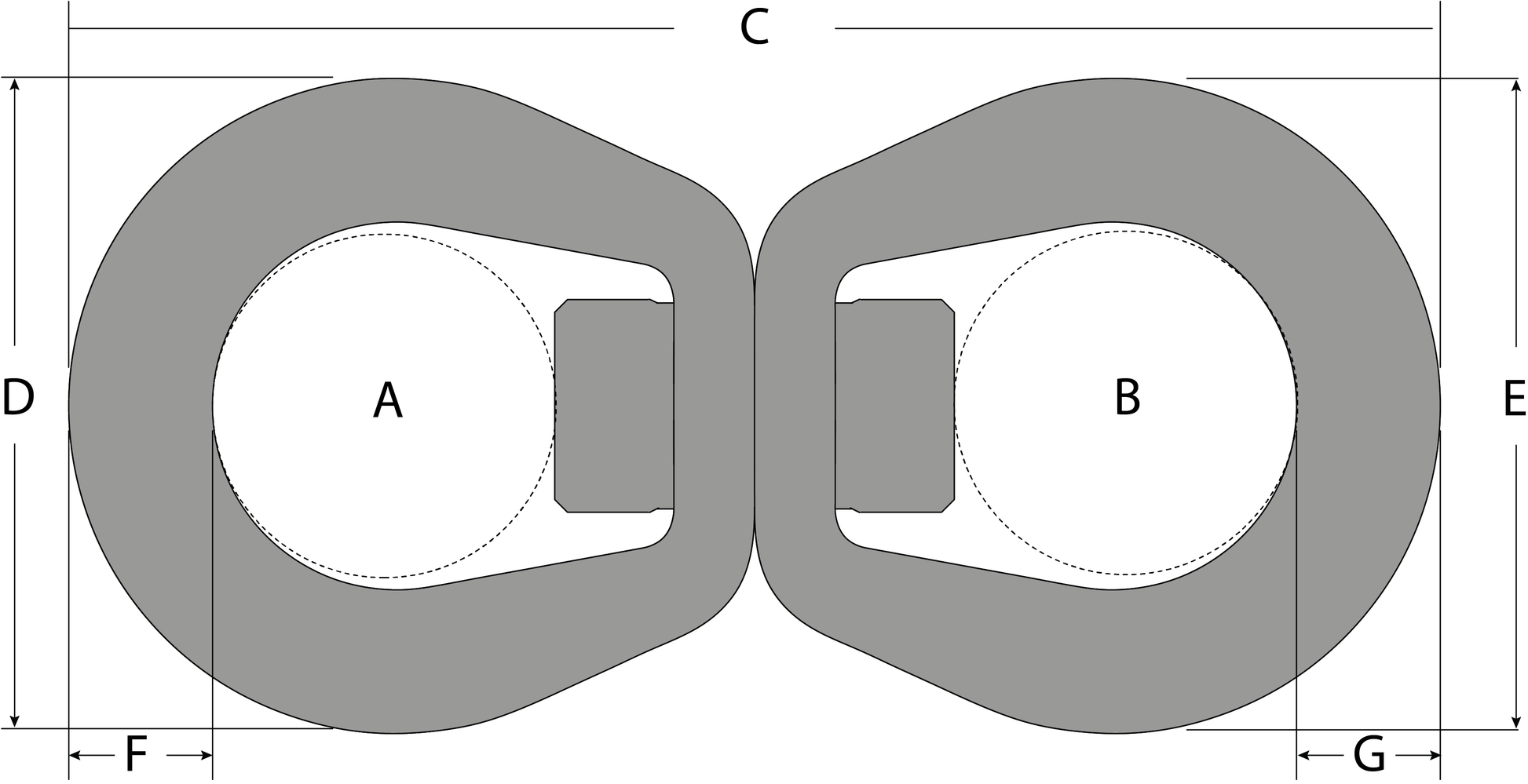

    Dimensions

  • A(in.) - 1.11" (28.2mm)

  • B(in.) - 1.11" (28.2mm)

  • C(in.) - 4.38" (111.3mm)

  • D(in.) - 2.08" (52.8mm)

  • E(in.) - 2.08" (52.8mm)

  • F(in.) - 0.44" (11.2mm)

  • G(in.) - 0.44" (11.2mm)
