Product Description

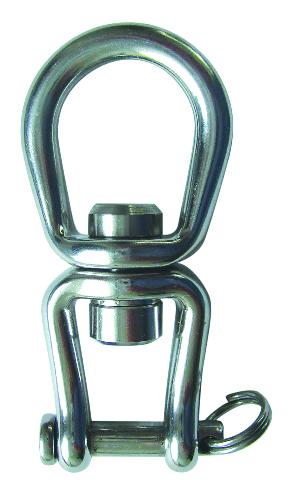

Tylaska 3" T5 Large/Clevis Bail Swivel
Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.
Specifications
Shackle Type - T5 Large/Clevis Bail Swivel
Safe Working Load(lb.) - 2,500 (1,130kg)
Breaking Strength(lb.) - 5,000 (2,270kg)
Weight(oz.) - 2.7

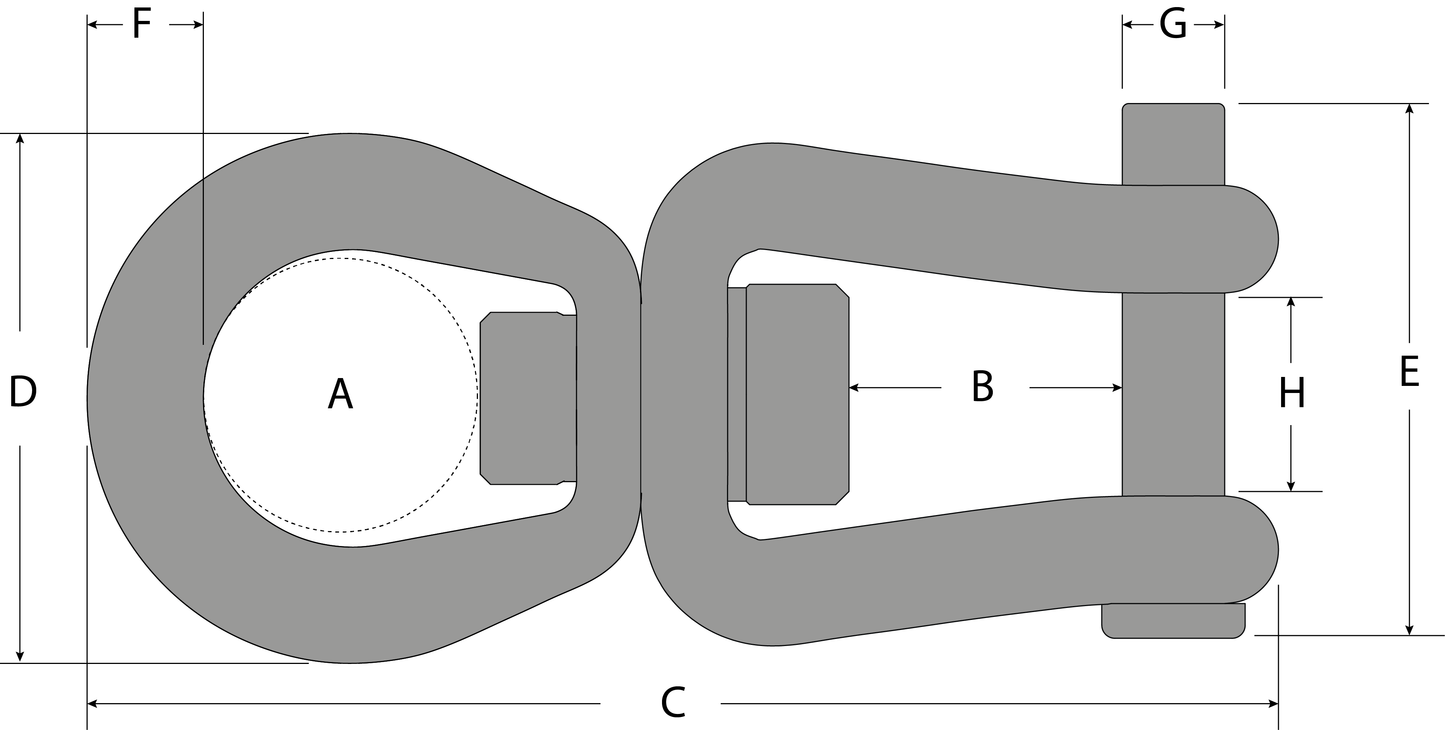

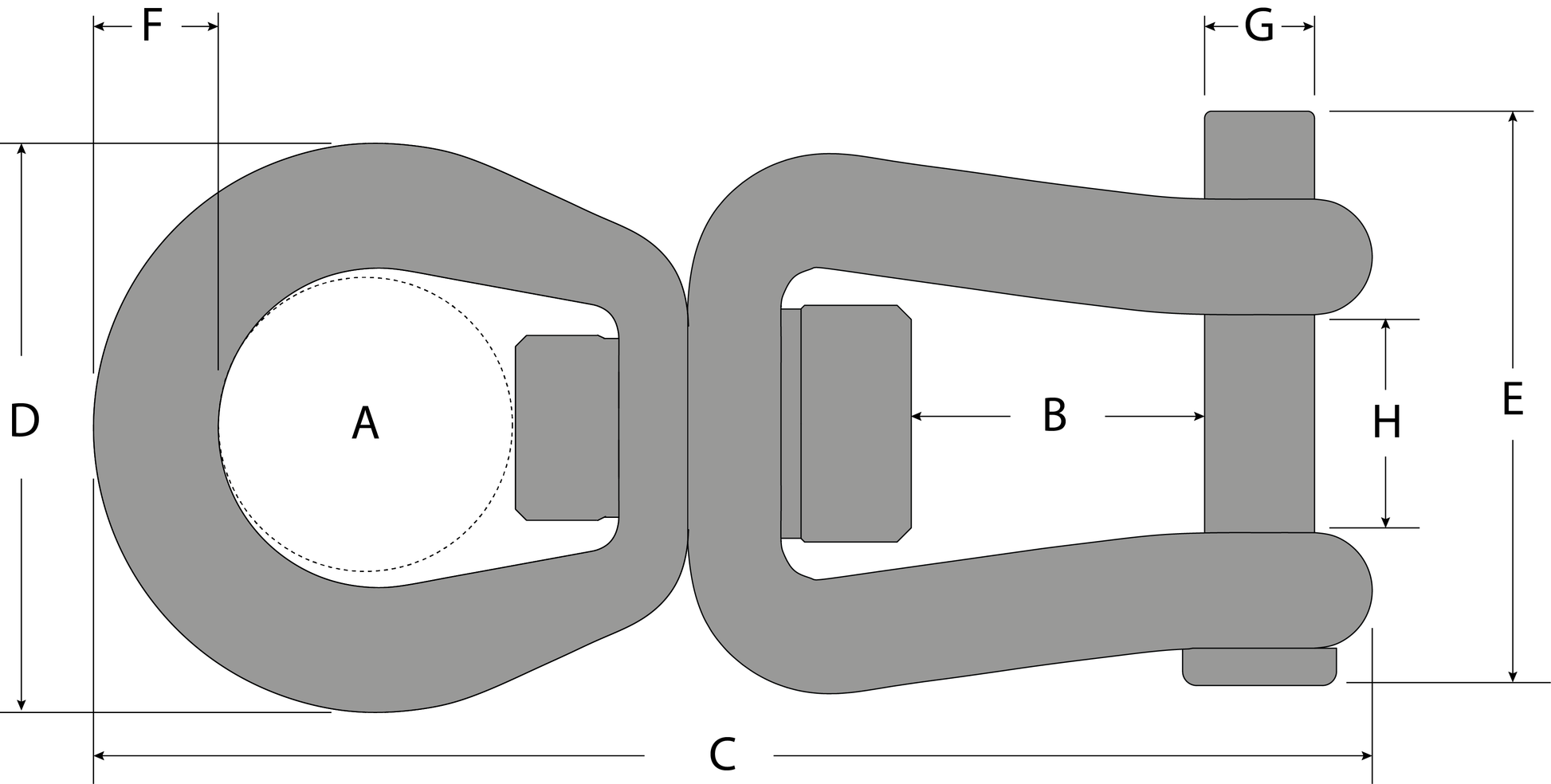

Dimensions
A(in.) - 0.81" (20.6mm)
B(in.) - 0.64" (16.3mm)
C(in.) - 2.96" (75.2mm)
D(in.) - 1.44" (36.6mm)
E(in.) - 1.30" (33mm)
F(in.) - 0.29" (7.3mm)
G(in.) - 0.24" (6.1mm)
H(in.) - 0.55" (14mm)
![](https://cdn.shopify.com/s/files/1/0065/7349/0245/files/LB-CB_DIM_480x480.jpg?v=1664468634)
