Tylaska 3" J20 J-Lock Shackle

Tylaska 3" J20 J-Lock Shackle

$196.19 USD
$261.58 USD $196.19 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

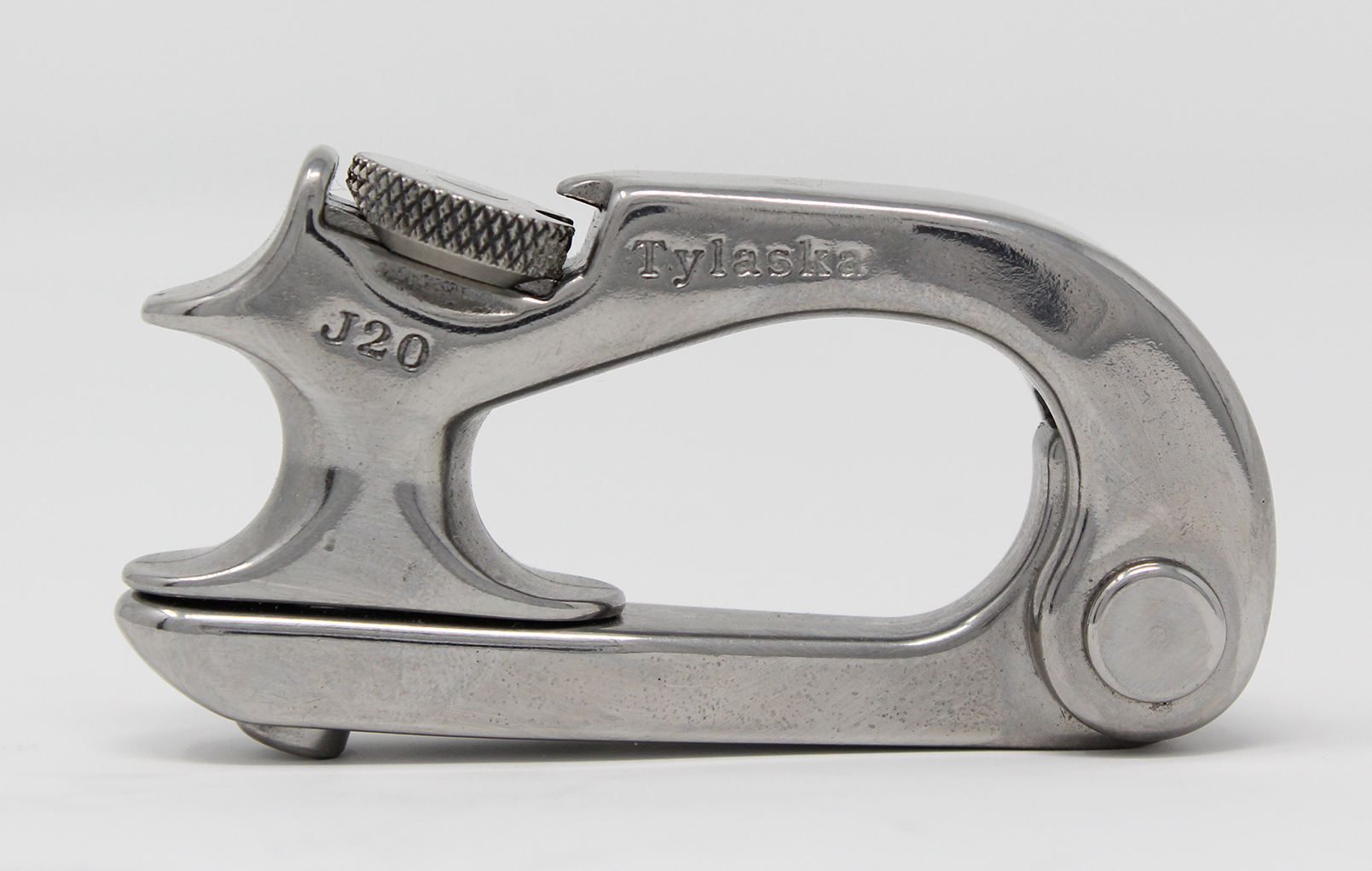

Tylaska 3" J20 J-Lock Shackle

Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.

  • Easy to use working mechanism

  • Heat treated 17-4 PH stainless steel


    • Specifications

  • J Lock Type - J20

  • Safe Working Load(lb.) - 10,000 (4,536kg)

  • Breaking Strength(lb.) - 20,000 (9,072kg)

  • Line Size(mm) - 1/2" - 5/8" (12mm-16mm)

  • Weight(oz.) - 5.9 (167g)

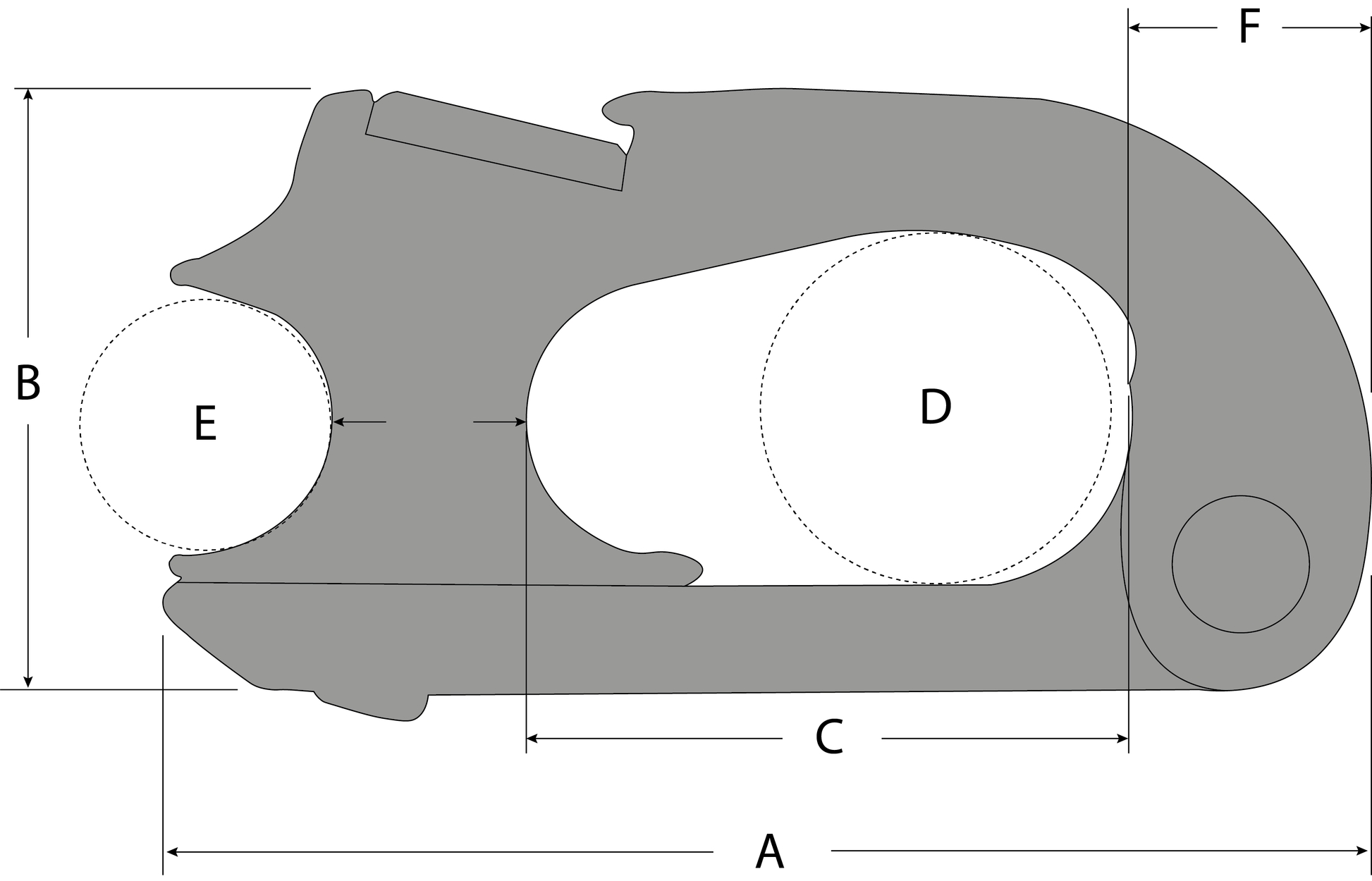

    Dimensions

  • A(in.) - 3.03" (77mm)

  • B(in.) - 1.53" (38.9mm)

  • C(in.) - 1.50" (38.1mm)

  • D(in.) - 0.84" (21.3mm)

  • E(in.) - 0.63" (16mm)

  • F(in.) - 0.63" (16mm)

  • Thickness(in.) - 0.49" (12.4mm)

    •
