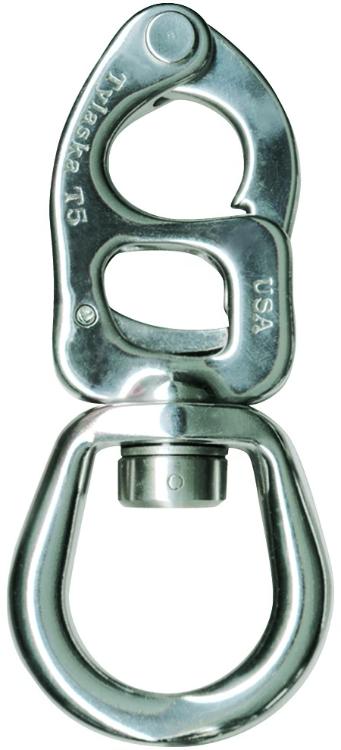

Tylaska 3 5/16" T5 Large Bail Snap Shackle

Item #

TY1005-L

Product Description

Tylaska 3 5/16" T5 Large Bail Snap Shackle

Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a breaking strength of 5,000 lbs and weigh just 2.2 ounces in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats.

Specifications

  • Shackle Type - T5 Large Bail

  • Safe Working Load(lb.) - 2,500 (1,130kg)

  • Breaking Strength(lb.) - 5,000 (2,270kg)

  • Boat Size(ft.) - 20' - 30'

  • Weight(oz.) - 2.7 (77g)

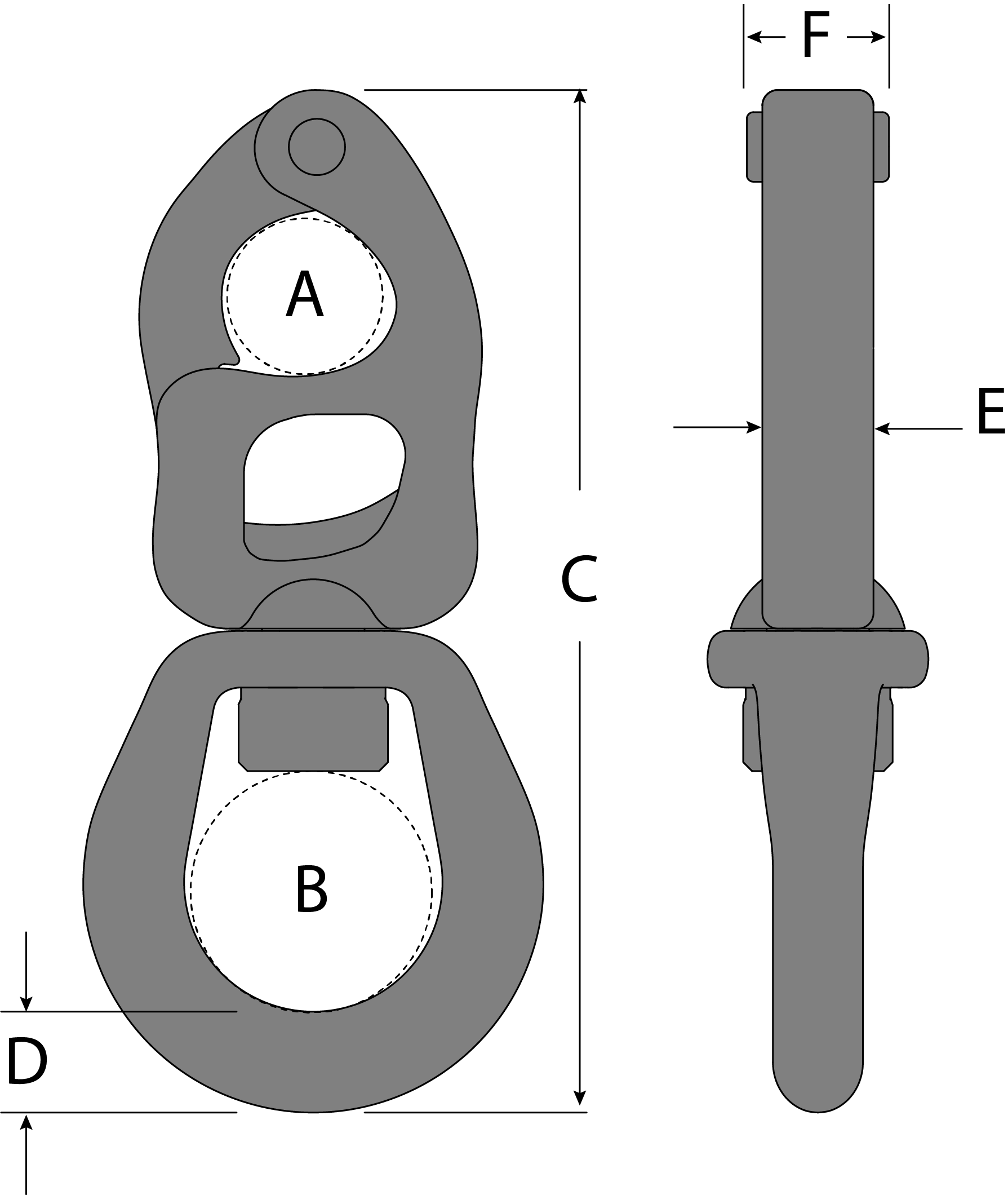

    Dimensions

  • A(in.) - 0.53" (13.5mm)

  • B(in.) - 0.81" (20.6mm)

  • C(in.) - 3.37" (85.6mm)

  • D(in.) - 0.29" (7.4mm)

  • E(in.) - 0.30" (7.6mm)

  • F(in) - 0.44" (11.1mm)
  •
