Product Description

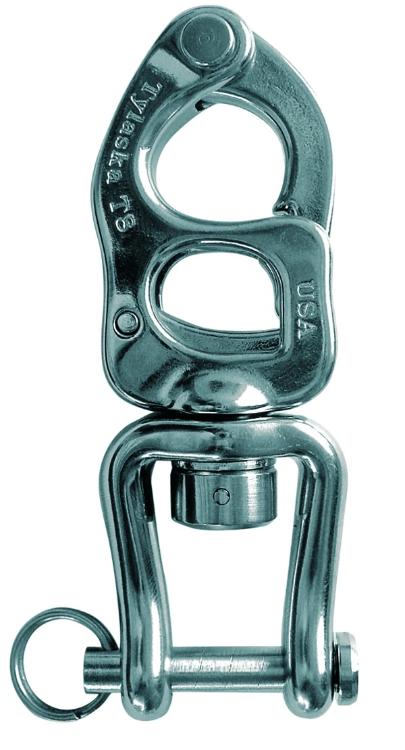

Tylaska 3 3/4" Clevis Bail Snap Shackle
Tylaska T8 Snap Shackles are perfect for applications requiring high strength and low weight. They have a breaking strength of 8,000 lbs and weigh only 3.5 ounces in the standard bail configuration. Ideal for the 24 to 36 foot sailboat.
Specifications
Shackle Type - T8 Clevis Bail
Safe Working Load(lb.) - 4,000 (1,810kg)
Breaking Strength(lb.) - 8,000 (3,630kg)
Boat Size(ft.) - 24' - 36'
Weight(oz.) - 4.3 (122g)

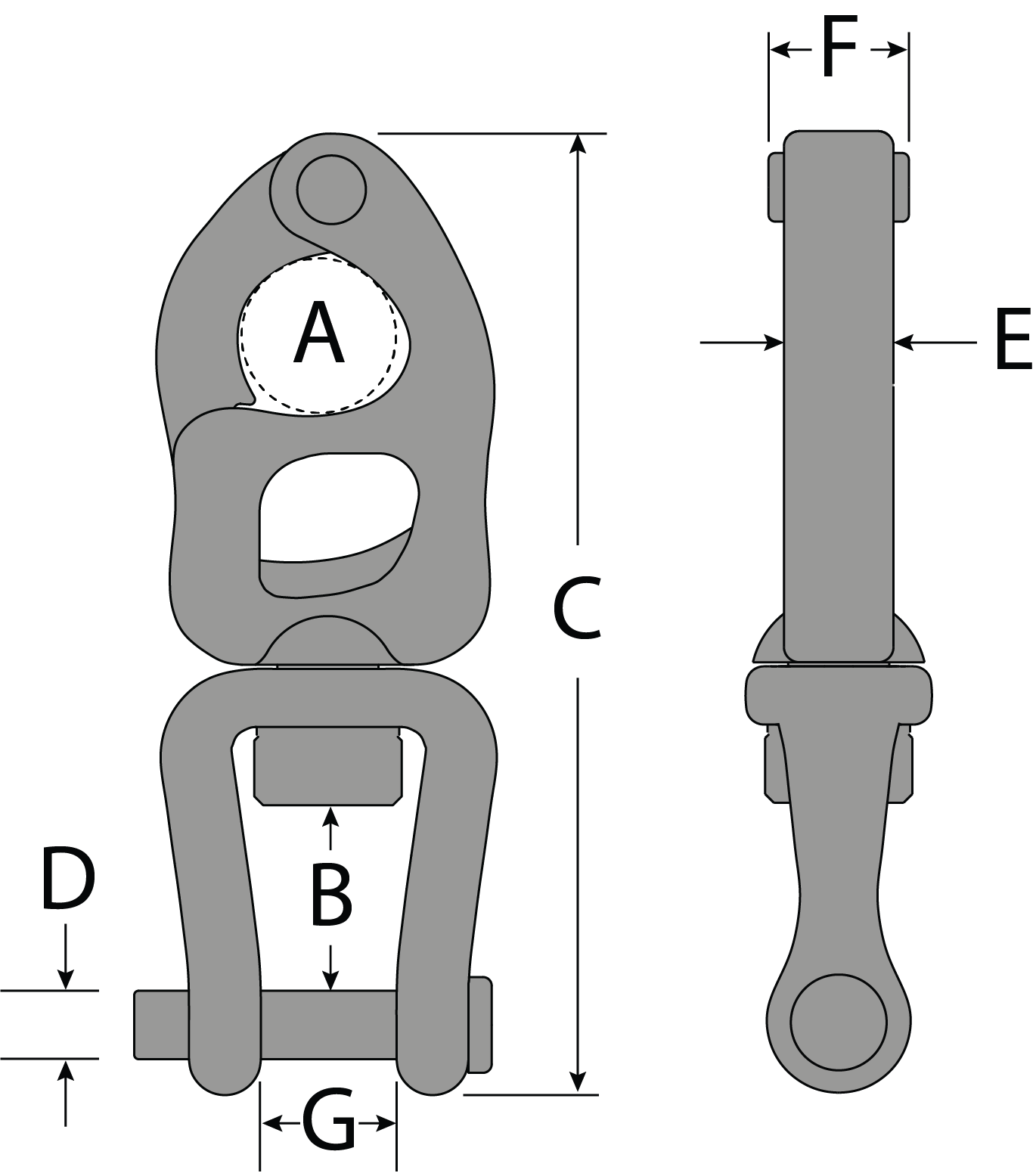

Dimensions
A(in.) - 0.63" (16mm)
B(in.) - 0.67" (17mm)
C(in.) - 3.70" (94.1mm)
D(in.) - 0.28" (7.1mm)
E(in.) - 0.38" (9.7mm)
F(in.) - 0.54" (13.7mm)
G(in.) - 0.53" (13.5mm)
