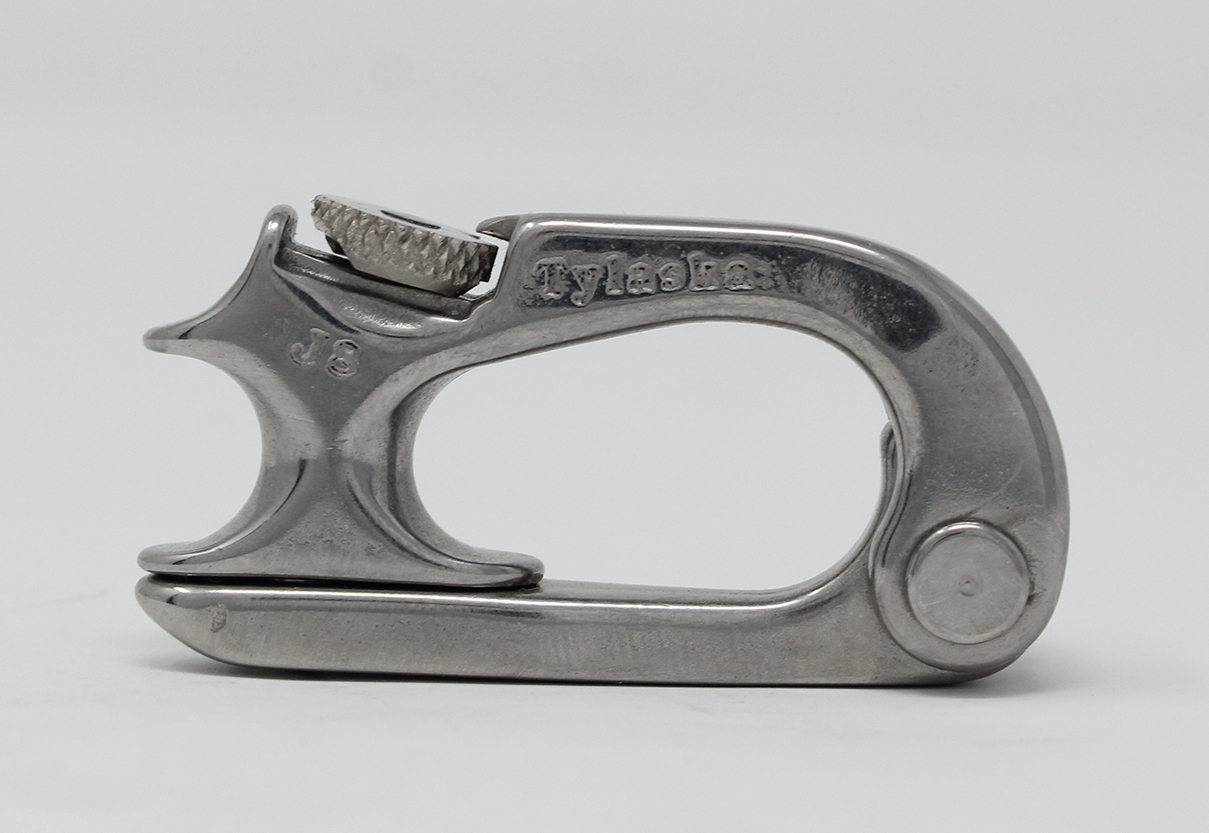

Tylaska 2.1" J8 J-Lock Shackle

Tylaska 2.1" J8 J-Lock Shackle

$143.63 USD
$191.50 USD $143.63 USD
Sale Sold out
Shipping calculated at checkout.

Product Description

Tylaska 2.1" J-Lock Shackle

Easily spliced onto Genoa sheets, outhauls and halyards, the low-profile Tylaska J-Locks fit through most Genoa blocks for fast sheet changes. The unique patented double-locking plunger locks in two directions to provide the ultimate protection against accidental opening during flogging.

  • Easy to use working mechanism

  • Heat treated 17-4 PH stainless steel


    • Specifications

  • J Lock Type - J8

  • Safe Working Load(lb.) - 4,000 (1,814kg)

  • Breaking Strength(lb.) - 8,000 (3,629kg)

  • Line Size(mm) - 5/16" - 7/16" (8mm-10mm)

  • Weight(oz.) - 1.9 (54g)

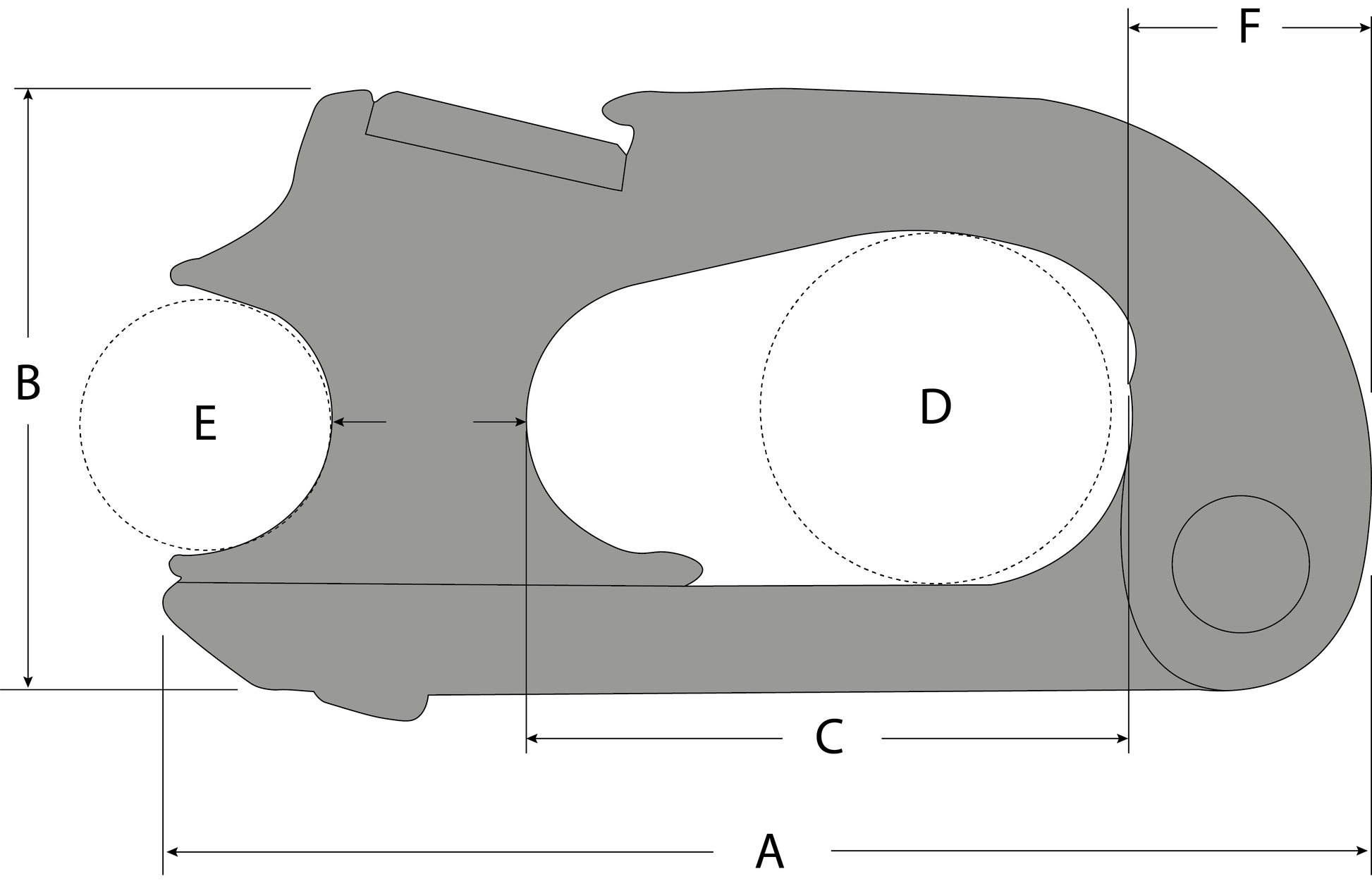

    Dimensions

  • A(in.) - 2.12" (53.9mm)

  • B(in.) - 1.06" (26.9mm)

  • C(in.) - 1.06" (26.9mm)

  • D(in.) - 0.62" (15.7mm)

  • E(in.) - 0.44" (11.2mm)

  • F(in.) - 0.42" (10.7mm)

  • Thickness(in.) - 0.35" (8.9mm)

    •
