Tylaska 2 5/8" T5 Standard/Clevis Bail Swivel

Item #

TY1205-SC

Product Description

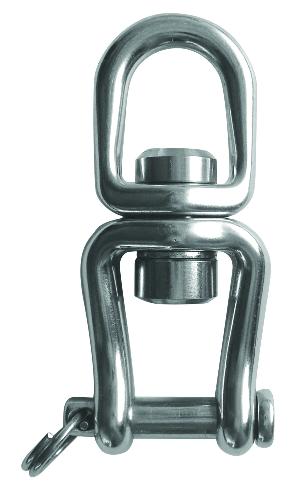

Tylaska 2 5/8" T5 Standard/Clevis Bail Swivel

Swivel types come in each size T5, T8, T12, T20, T30, T40, T50 and any combination of bails including standard/standard, standard/large, standard/clevis, large/large, large/clevis, and clevis/clevis.

Specifications

  • Shackle Type - T5 Standard/Clevis Bail Swivel

  • Safe Working Load(lb.) - 2,500 (1,130kg)

  • Breaking Strength(lb.) - 5,000 (2,270kg)

  • Weight(oz.) - 2.3

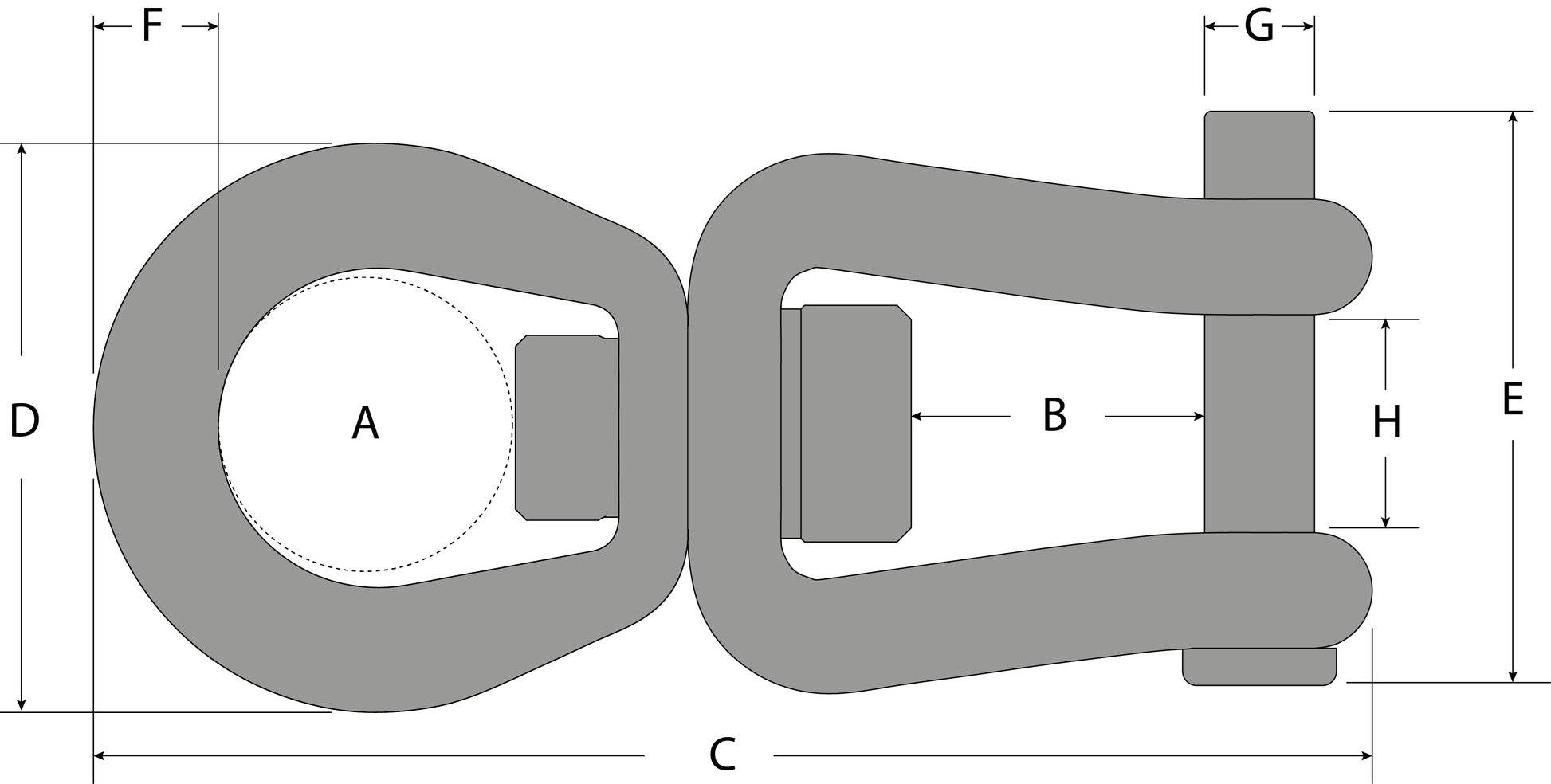

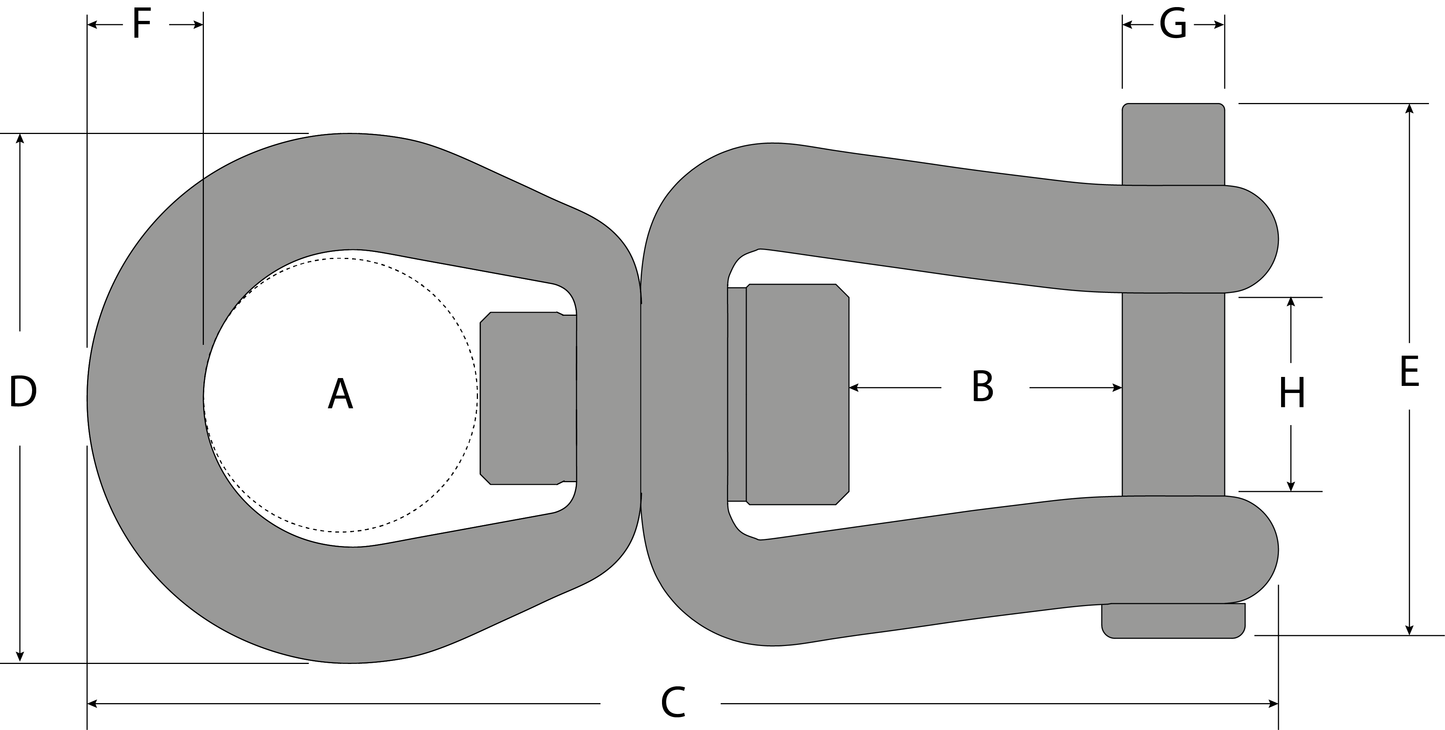

    Dimensions

  • A(in.) - 0.53" (13.5mm)

  • B(in.) - 0.64" (16.3mm)

  • C(in.) - 2.60" (66mm)

  • D(in.) - 1.01" (25.7mm)

  • E(in.) - 1.30" (33mm)

  • F(in.) - 0.24" (6.1mm)

  • G(in.) - 0.24" (6.1mm)

  • H(in.) - 0.55" (14mm)
