Tylaska T40 Standard Bail Snap Shackle

Item #

TY1040-S

Product Description

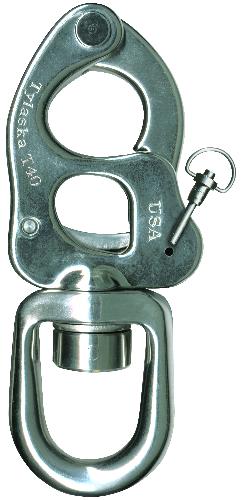

Tylaska T40 Standard Bail Snap Shackle

Tylaska T40 Snap Shackles are designed for massive sailboats or for towing or individual applications. With a breaking strength of 40,000 pounds, this shackle can handle sail loads on the largest of sailboats. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications

  • Safe Working Load(lb.) - 20,000

  • Breaking Strength(lb.) - 40,000

  • Boat Size(ft.) - 100' + Maxi Boats

  • Weight - 99.3 oz. (2.82 kg)

    Dimensions

  • A - 1.8" (45.7 mm)

  • B - 1.68" (42.6 mm)

  • C - 1.85" (47.1 mm)

  • D - 1.78" (45.2 mm)

  • E - 9.57" (243 mm)
