Tylaska 10.63" T50 Standard Bail Snap Shackle

Item #

TY1050-S

Product Description

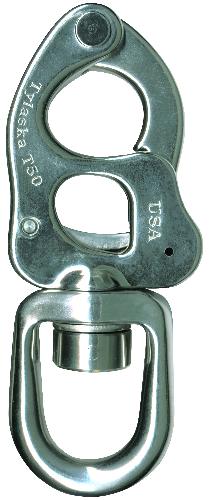

Tylaska 10.63" T50 Standard Bail Snap Shackle

Tylaska T50 Snap Shackles are the largest trigger-type snap shackle ever made. They can be opened using either a trigger or lanyard. A lanyard allows for remote operation - ideal for towing applications. The locking pin provides extra security from accidental release.

Specifications

  • Shackle Type - T50 Standard Bail

  • Safe Working Load(lb.) - 25,000 (11,340kg)

  • Breaking Strength(lb.) - 50,000 (22,680kg)

  • Boat Size(ft.) - 100'+

  • Weight(lb.) - 7.05lbs (3.20kg)

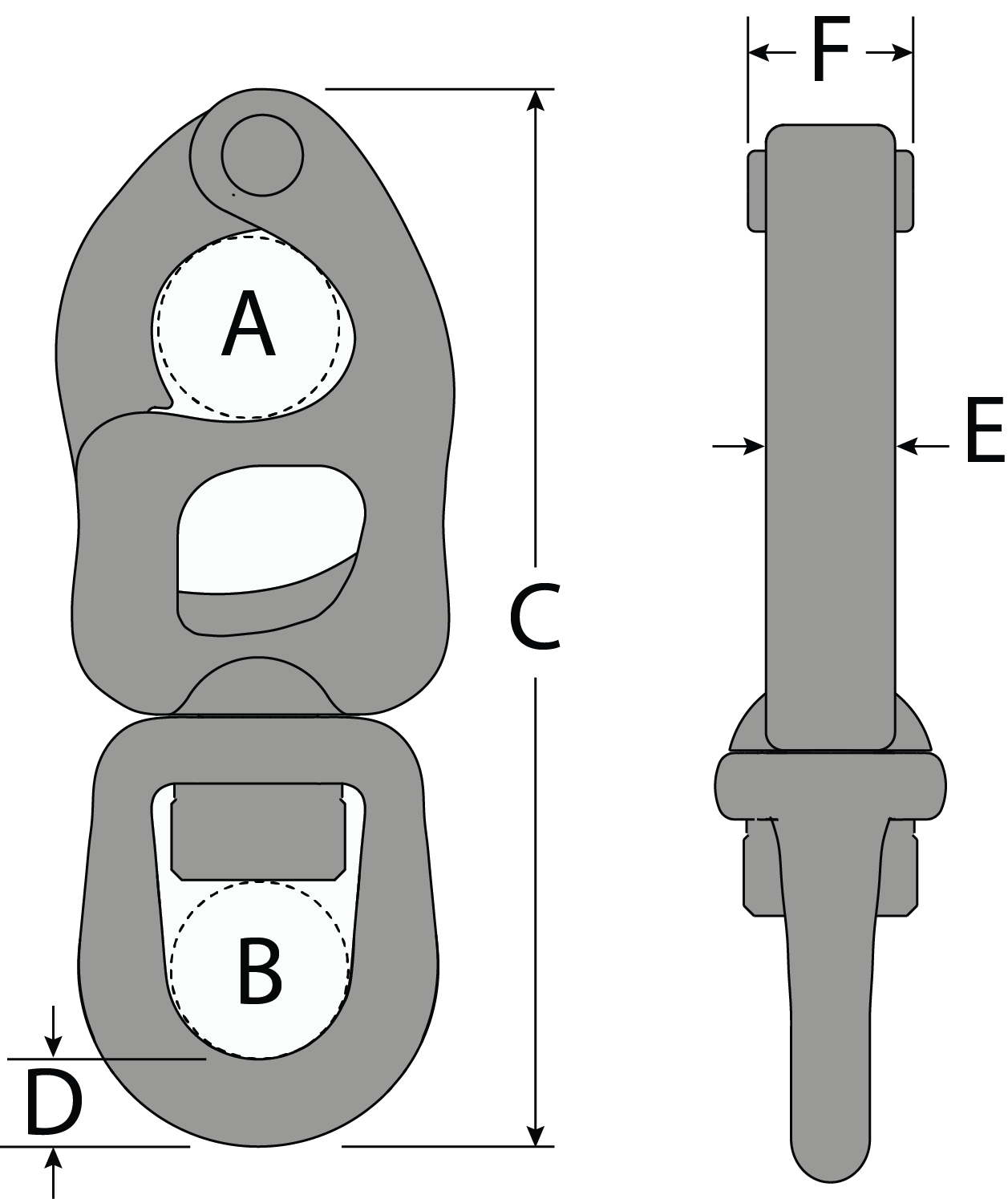

    Dimensions

  • A(in.) - 1.95" (49.5mm)

  • B(in.) - 2.00" (50.8mm)

  • C(in.) - 11.58" (294.1mm)

  • D(in.) - 0.83" (21.1mm)

  • E(in.) - 1.25" (31.8mm)

  • F(in.) - 1.55" (39.4mm)
