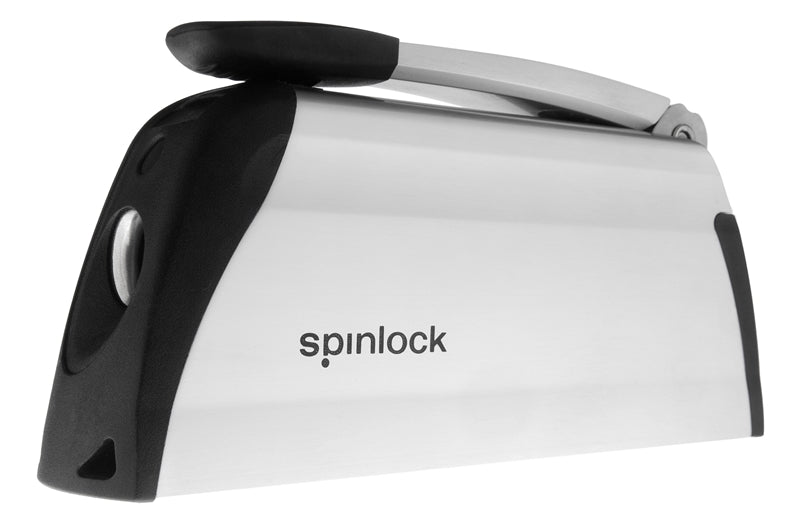

Spinlock XX Single Power Clutch 5/16" to 1/2" w/ Lock-Up Cam

Item #

XX0812/L

Material : Black

Product Description

Spinlock XX Single Power Clutch 5/16" to 1/2" w/ Lock-Up Cam

Allows line to run freely in or out with the handle closed

Ideal for applications such as spinnaker sheets and mainsheet when locking is rarely needed

Lifting the rear switch instantly applies clutching mode

Specifications:

Rope Range - 8mm - 12mm (5/16" - 1/2")

Load - 1200kg - 1800kg (2640lb - 3968lb)

Max SWL - 1800kg (3968lb)

Weight - 1.064kg (2.35lb)

Fasteners - 2 x M8 (5/16") Hex Head (Supplied)

Secure clutching solution for performance yachts from 35-50'

Features and Benefits:

  • Latest jaw technology offers consistent holding of blended covered ropes

  • Optimized for high performance 8mm - 12mm (5/16" - 1/2”) line diameters

  • Available white coated, black anodized or silver polished alloy to match deck or rig

  • Side mount versions available

  • Lock Open version available

  • Access ports for fresh water flushing

  • Smooth controlled release action

  • One-piece jaw set is easy to remove and clean

  • Line height optimized for correct lead to winch

  • Can be set up for remote operation with no handle

  • Click Here for Installation & Usage Guide
