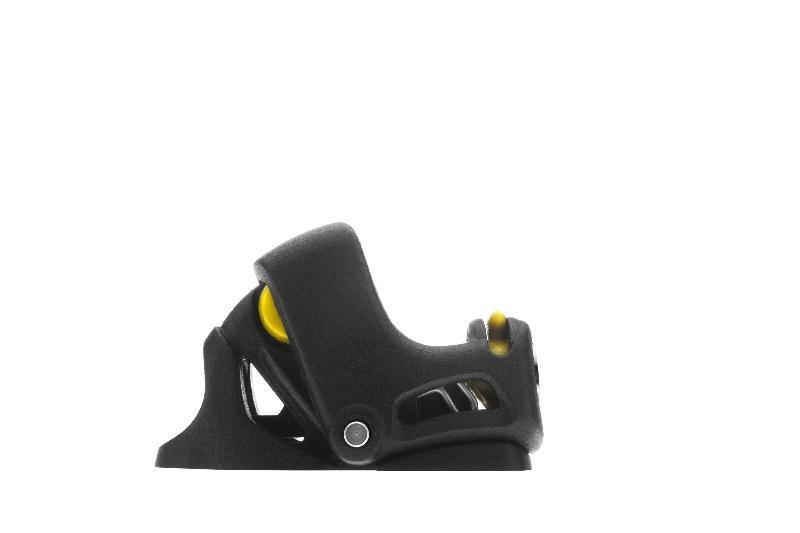

Spinlock PXR Single Cam Cleat

Item #


Product Description

Spinlock PXR Single Cam Cleat


  • Rope Range - 2mm - 6mm (3/32" - 1/4")

  • Load - 30kg - 140kg (0.06lb - 308lb)

  • Max SWL - 140kg (308lb)

  • Weight - 0.043kg (0.0948lb)

    The Easiest Cleat to Release

    Compact roller action camcleat for easy release of high performance controls and mainsheets

    Features and Benefits:

  • Fast precise control for hand tensioned lines

  • Ideal for high performance line

  • Development of successful PX model

  • Three stage adjustable release spring

  • Alloy cam and base surfaces as standard

  • Ultra compact low profile design

  • Stainless steel rope guides provide wide operating arc

  • Integral 6 degree wedge

  • T-Series for retrofit in hole centers of traditional cam cleats

  • SW-Series swivel mounted PXR

  • VP-Series mast mounted PXR
