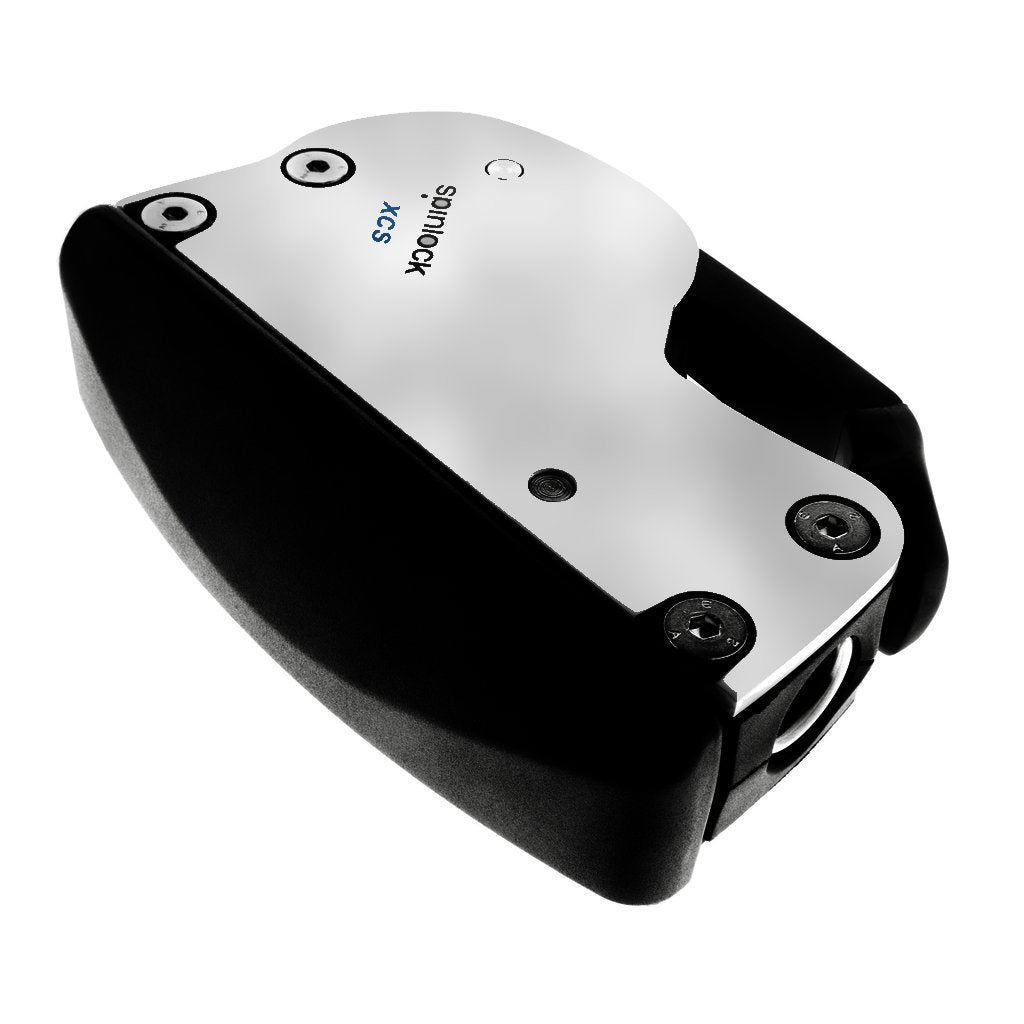

Spinlock XCS Horizontal Single Stainless Steel Clutch 5/16" to 9/16" (Starboard)

Spinlock XCS Horizontal Single Stainless Steel Clutch 5/16" to 9/16" (Starboard)

Side mounting is usually the neatest solution for spars, side decks and coamings

Specifications:

Rope Range - 8mm - 14mm (5/16" - 9/16")

Load - 500kg - 1200kg (1103lb - 2640lb)

Max SWL - 1200kg (2640lb)

Weight - 1.115kg (2.46lb)

Specified as standard on production yachts worldwide and the choice of racing yachts inshore and offshore

Features and Benefits:

Aluminum sides for sustained higher load operation

Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics

Mid to higher load rope holding

Reliable all around performance

Choose XCS0610 for best performance on smaller diameter lines

Choose XCS0814 for best performance across the rope range

Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines

Extruded alloy handle with soft end grip

Secure handle locking in open and closed position

Easy access to fasteners

Handle labels supplied
