Schaefer Standup Swivel

Item #

505-62

Product Description

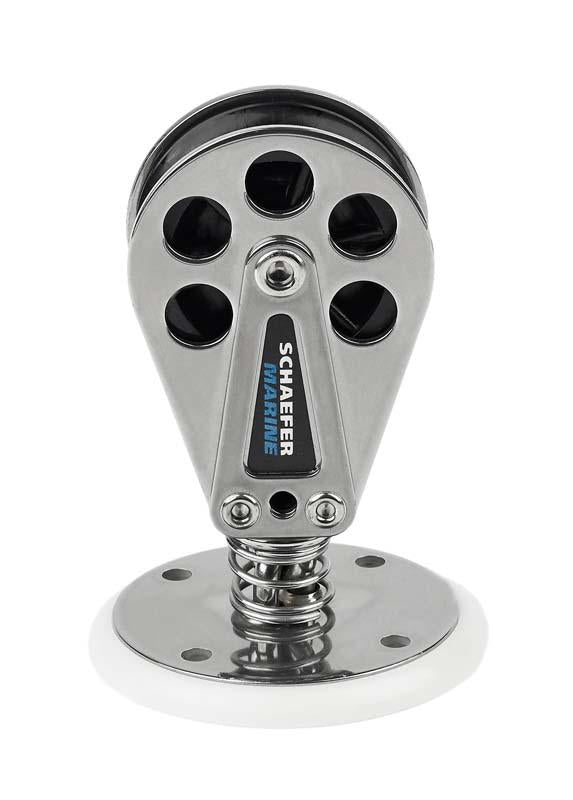

Schaefer Stand-Up Swivel

Stand up swivel block with Stainless Steel cheeks. Delrin(tm) sheave ensures smooth operation and high safe working load. Order backing plate separately #97-48. Boats to 28'.

Specifications:

  • Sheave Dia.: 2 in.(51 mm)

  • Dia. includes urethane base: 2 7/8 in. (73 mm)

  • Max Line: 7/16 in. (11 mm)

  • Height: 4 1/32 in. (103 mm)

  • H2: 2 3/32 in. (54 mm)

  • Fastener size: (4), #10 RH (5 mm)

  • Weight Stain: 9 oz. (255 g)

  • C/C: 1 12/31 in. (36 mm)

  • SWL: 1750 lbs. (790 kg)
