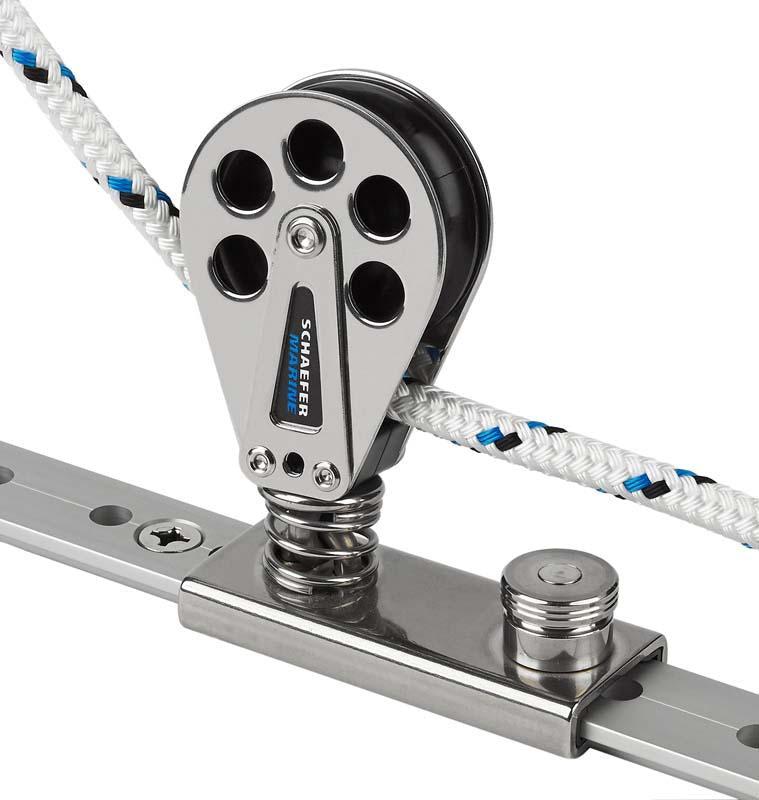

Schaefer Spring Loaded SS Line Slide 1 1/4 in Track Slider

Item #

705-92

Usually ships within 1-3 days

Product Description

Schaefer Spr. Loaded/Lined Slide/S.S.

705-92 Stand up spring block for 1-1/4" T-Track. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size: 1 1/4" x 3/16" (32 mm x 5 mm)

  • Boat Size Up To LOA, Displ., Sail Area: 33', 12000 lbs.,520 sq. ft. (10 m, 5455 kg, 48 m2),

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Max Line: 1/2 in. (12 mm)

  • Length: 4 in. (102 mm)

  • Width: 1 9/16 in. (39 mm)

  • Height: 4 15/16 in. (126 mm)

  • Bearing Height: 2 3/8 in. (67 mm)

  • SWL: 2250 lbs. (1020 kg)

  • Weight: 14 oz. (397 g)
