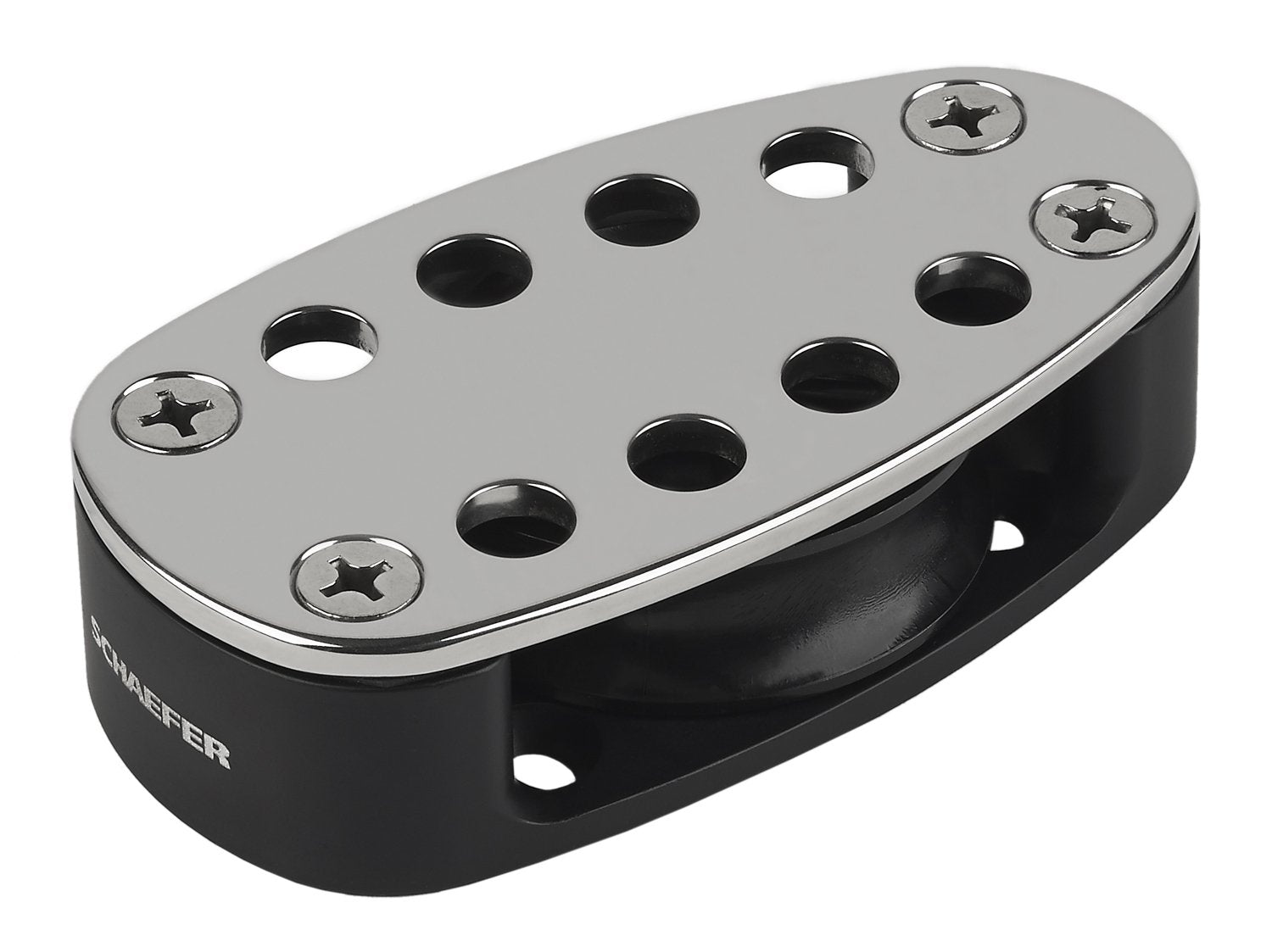

Schaefer Single Foot Block - S.S. - Max Line 1/2" (13 mm)

Item #

37-15

Product Description

Schaefer Single Foot Block - S.S. - Max Line 1/2" (13 mm)

Stainless Steel Footblock with non-ball bearing Delrin(tm) Sheave. Machined Aluminum construction base. Boats to 33' - Safe Working Load 2500 lbs. Easy Installation with "Strip from the top" design.

Specifications:

  • Boat Size Up To LOA, Displ., Sail Area: 33', 12000 lbs., 530 sq. ft. (10 m, 5455 kg, 48 m2)

  • Sheave Dia.: 2 3/8 in. (60 mm)

  • Max Line 1/2 in. (13 mm)

  • Length: 4 5/8 in. (118 mm)

  • Width: 2 15/32 in. (63 mm)

  • Height: 1 1/4 in.(32 mm)

  • Fasteners: (4) 1/4 in. FH (6 mm)

  • SWL: 2500 lbs. (1136 kg)

  • Weight Stain: 14 oz. (397 g)
