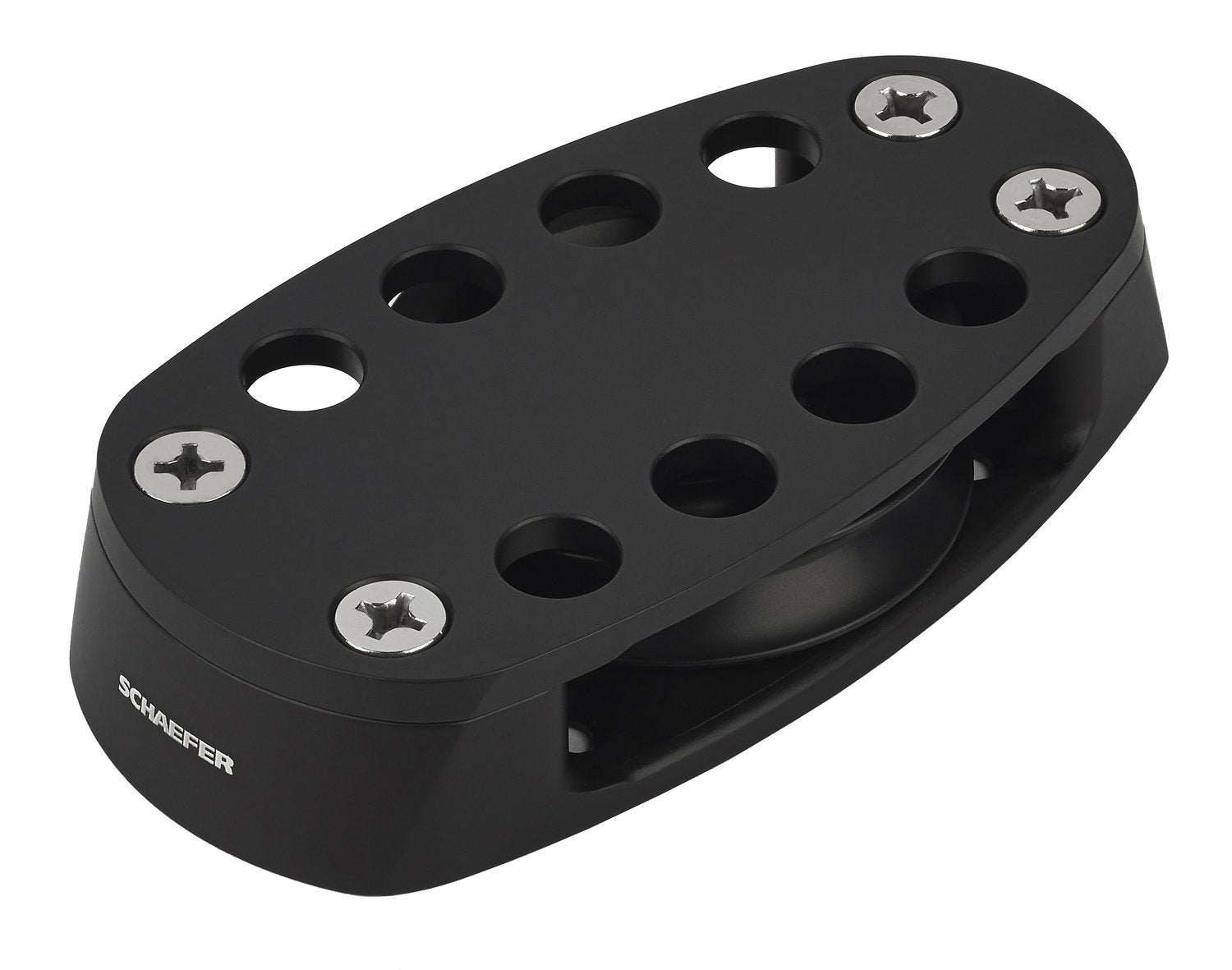

Schaefer Single Foot Block - ALUM - Max Line 5/8" (16 mm)

Item #

37-43

Product Description

Schaefer Single Foot Block - ALUM - Max Line 5/8" (16 mm)

Aluminum Footblock with Aluminum Sheave running on Nomex/Teflon(tm) Bearing and Torlon(tm) Ball Bearings. Machined Aluminum construction. Boats to 38' - Safe Working Load 4400 lbs. Easy Installation with "Strip from the top" design.

Specifications:

  • Boat Size Up To LOA, Displ., Sail Area: 38', 18000 lbs., 715 sq. ft. (11.5 m, 8182 kg, 66 m2)

  • Sheave Dia.: 3 1/4" in. (83 mm)

  • Max Line: 5/8 in. (16 mm)

  • Length: 6 23/32 in. (171 mm)

  • Width: 3 3/8 in. (86 mm)

  • Height: 1 5/16 in. (34 mm)

  • Fasteners: (4) 5/16 in. FH (8 mm)

  • SWL: 4400 lbs. (2000 kg)

  • Weight Alum.: 1 lb. 11 oz. (765 g)
